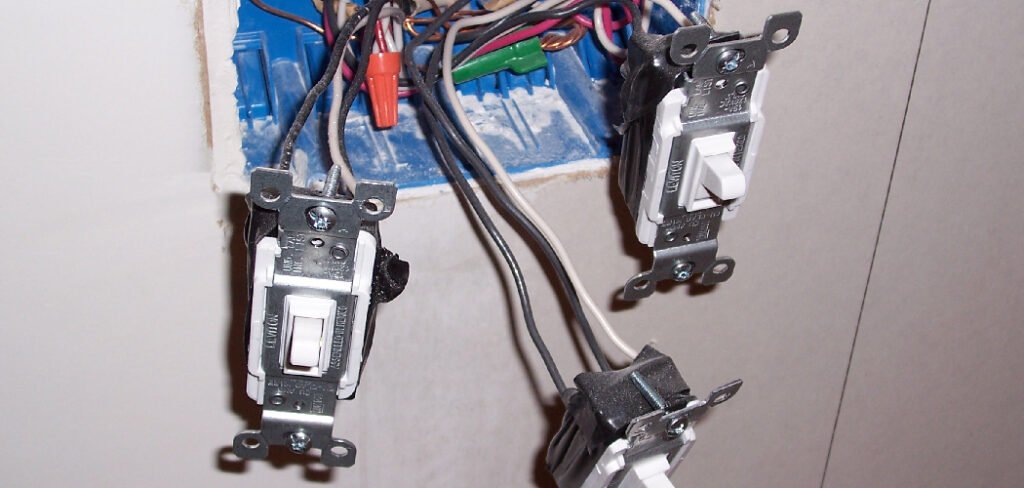

Connecting multiple lights to a single motion sensor is a practical way to enhance both convenience and safety in your home. Whether illuminating a long driveway, backyard, or hallway, having all lights activate simultaneously simplifies the lighting system while conserving energy. Learning how to wire a motion sensor to multiple lights allows you to manage several fixtures with one sensor, creating a cohesive setup.
Approaching this project calmly and methodically ensures the process is safe and effective. By preparing tools, understanding the wiring, and following proper safety measures, homeowners can enjoy reliable automated lighting without unnecessary complexity or stress.
What Does Wiring a Motion Sensor to Multiple Lights Mean?
In simple terms, wiring a motion sensor to multiple lights means connecting two or more light fixtures to a single motion-activated device. When the sensor detects movement, it sends an electrical signal that simultaneously turns on all connected lights. This setup is often called “parallel wiring” because each light is powered through the same sensor. It allows homeowners to cover larger areas without installing multiple detectors, ensuring consistent illumination for hallways, entrances, or outdoor spaces. The system is designed to operate safely, reliably, and efficiently when the proper connections and load capacities are observed.
Preparing for Your Wiring Project
Before starting, it is helpful to plan the installation carefully. Take time to determine the locations for your sensor and lights, the path for running wires, and the appropriate safety equipment needed. Organizing these details ahead of time simplifies the installation process and reduces potential mistakes. A clear plan ensures that each fixture receives power properly and that the sensor is positioned for optimal detection. This calm, structured approach creates confidence in the project and establishes the groundwork for a safe and functional lighting system.
The Importance of Proper Wiring
Proper wiring is essential for both the safety and effectiveness of your lighting system. Correctly connecting a motion sensor to multiple lights ensures that the sensor responds reliably and that all fixtures operate in unison. Following proper electrical procedures reduces potential risks such as short circuits, overloading, or intermittent operation. In addition, proper installation preserves the longevity of both the sensor and the lights, prevents energy waste, and maintains a safe environment for all household members. Taking time to wire the system correctly fosters peace of mind and consistent performance.
Common Situations You Should Be Aware Of
When installing a motion sensor with multiple lights, certain situations can affect performance. Exceeding the sensor’s maximum load capacity is a common concern; each sensor has a wattage limit, and connecting too many lights or high-wattage bulbs can create problems. Loose wire connections may cause flickering or intermittent power, affecting system reliability. Environmental factors, such as bright sunlight hitting the sensor or objects partially obstructing its detection range, can also trigger unexpected behavior. Understanding these situations helps you plan for better placement, safer connections, and a smoother installation process.
Tools and Materials You’ll Need

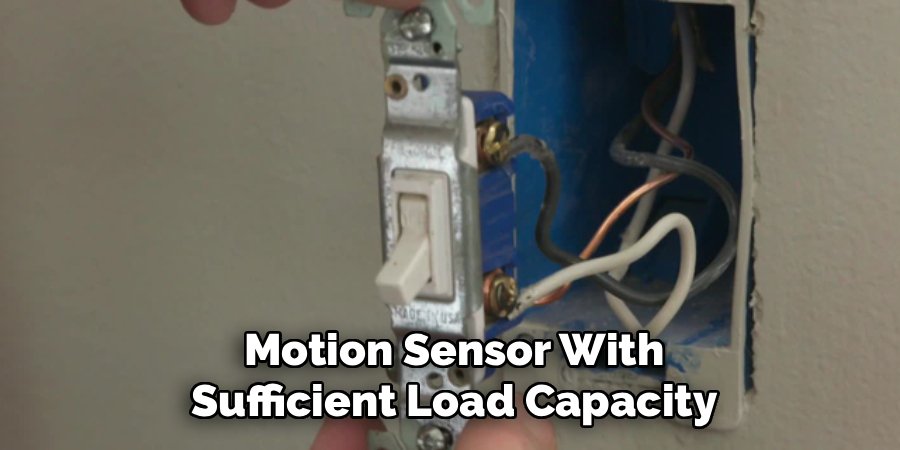

- Motion sensor with sufficient load capacity
- Light fixtures to be connected
- Electrical wire (correct gauge, e.g., 14/2 or 12/2 Romex)
- Wire strippers for insulation removal
- Pliers (needle-nose and linesman’s)
- Screwdrivers (Phillips and flat-head)
- Non-contact voltage tester
- Wire nuts for secure connections
- Junction boxes for housing wire splices
- Electrical tape for added security
- Safety glasses
- Ladder for elevated fixtures
7 Essential Steps on How to Wire a Motion Sensor to Multiple Lights
Step 1: Plan Your Wiring Layout
Simple Precaution: Always turn off the power at the breaker before starting. Use a voltage tester to confirm no electricity is flowing to the wires. Ensuring a safe environment before touching any electrical components minimizes the possibility of accidental shocks.
Step Explanation: Begin by sketching a wiring diagram to visualize the connections. Decide where the motion sensor and lights will be installed, considering the sensor’s range and field of detection. Identify the most efficient route for running wires from the power source to the sensor and then to each fixture. Parallel wiring allows each light to receive the full voltage independently. By planning ahead, you prevent unnecessary wire splices, reduce clutter, and ensure that all connections will be secure. This preparation improves safety and sets the stage for a smooth installation process.
Step 2: Mount the Motion Sensor and Light Fixtures
Simple Precaution: Ensure your ladder is placed on a stable, level surface. Avoid overreaching to maintain balance and prevent potential falls.
Step Explanation: Install the sensor according to the manufacturer’s instructions, typically using a mounting bracket. Ensure it is positioned to cover the intended detection area without interference from nearby objects or moving branches. Next, mount the light fixtures. For new installations, secure junction boxes to a solid structure such as a stud or joist. Properly anchoring both sensors and lights ensures that they remain stable over time and function correctly. Correct positioning allows the motion sensor to detect movement efficiently and prevents false triggers, ensuring a reliable automated lighting system.
Step 3: Run the Electrical Wires
Simple Precaution: Be mindful of studs, pipes, and existing wires when drilling or routing cables through walls or ceilings. Avoiding obstacles helps prevent damage and supports safe installation.
Step Explanation: Run a power cable from the breaker or existing junction box to the motion sensor. Then run separate cables from the sensor to each light fixture, leaving extra length for secure connections. Parallel wiring ensures each light is powered independently through the sensor. Use cable staples to secure the wires along their path, being careful not to pinch or damage insulation. Planning the wire route methodically improves functionality, reduces future troubleshooting, and maintains the integrity of the installation.

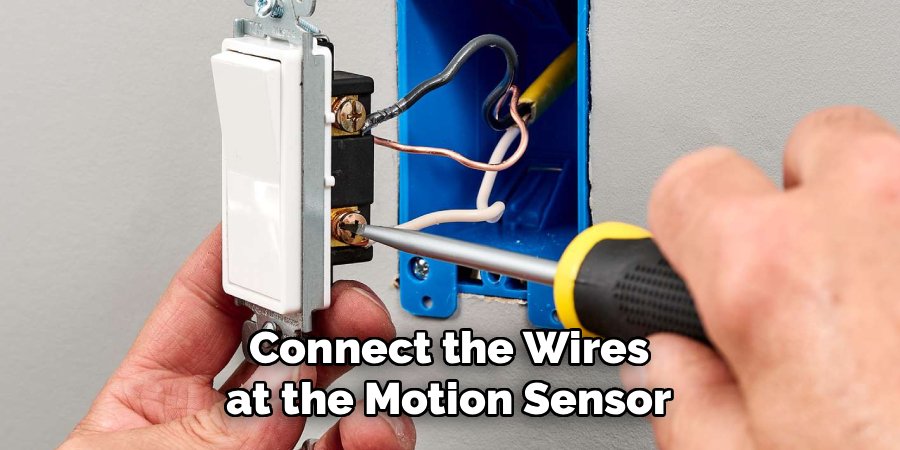

Step 4: Connect the Wires at the Motion Sensor
Simple Precaution: Follow the manufacturer’s wiring diagram carefully. Different sensor models may vary in configuration, so matching the connections correctly enhances safe operation.
Step Explanation: Inside the sensor’s junction box, connect all ground wires, then all neutral wires (white) from the power source, sensor, and outgoing light wires. Finally, connect the hot wire (black) from the power source to the sensor’s “line” input, and the sensor’s “load” or “switched” wire to the hot wires of all outgoing cables. These connections allow the sensor to activate all connected lights when motion is detected. Proper attention to detail ensures improved safety, reliable performance, and protects the sensor from potential overload or misoperation.
Step 5: Connect the Wires at Each Light Fixture
Simple Precaution: Secure wire nuts fully and wrap connections with electrical tape for added protection. Ensuring firm connections prevents future flickering or intermittent power.
Step Explanation: In each light fixture’s box, connect the ground wires, followed by the neutral wires, and finally the hot wires. For all but the last fixture, incoming and outgoing cables are connected to maintain continuity. At the final fixture, only the incoming wires from the previous light are connected. This arrangement ensures that each light receives proper voltage from the sensor and all fixtures operate in unison. Careful connections contribute to consistent performance, safety, and long-term reliability.
Step 6: Test the System

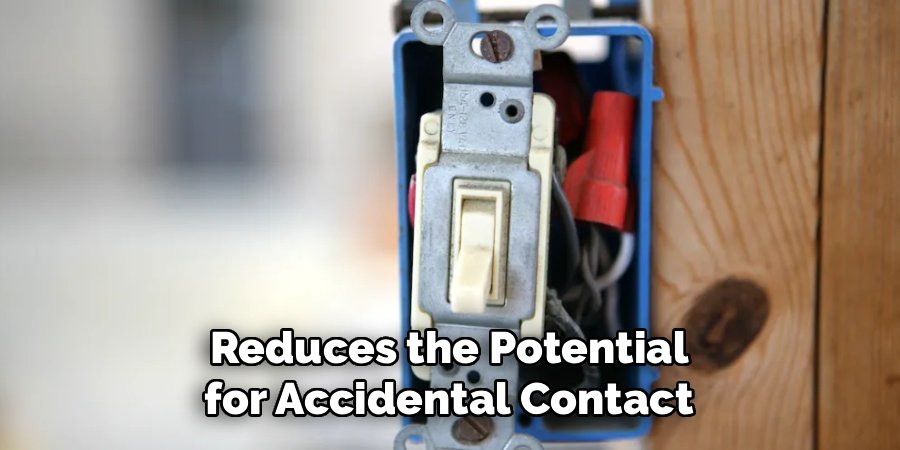

Simple Precaution: Confirm all wires are tucked safely inside junction boxes, and no bare wires are exposed before restoring power. Proper inspection reduces the potential for accidental contact.
Step Explanation: Turn the breaker back on and observe the lights. When motion is detected, all connected lights should activate simultaneously. Test the sensor from multiple angles to confirm proper coverage. If any lights fail to respond, power down and recheck all connections. Testing ensures the system functions as intended, verifies that safety measures are active, and confirms that the sensor and lights operate together efficiently. Regular checks after installation maintain safe and reliable operation.
Step 7: Adjust Sensor Settings
Simple Precaution: Make small adjustments incrementally and observe the effect. Following the manufacturer’s instructions ensures a safe, optimal configuration.
Step Explanation: Adjust the sensor’s sensitivity to control the detection range, the timer to regulate how long lights remain on, and the light-level or dusk/dawn settings for appropriate activation. Fine-tuning these parameters helps balance energy efficiency with functional coverage. Gradual adjustments and observation allow you to optimize performance while avoiding unnecessary triggers. Properly configured settings ensure your lights respond appropriately to motion, providing effective, reliable, and safe automated illumination.
Simple Safety Tips You Can Use
Always work with the power turned off and verify with a voltage tester. Use safety glasses and a stable ladder when mounting fixtures. Choose a motion sensor with sufficient load capacity for all lights. Ensure wires are securely connected and insulated with wire nuts and tape. Keep paths clear and use junction boxes to protect splices. Regularly inspect sensors and fixtures for debris or obstructions to maintain optimal operation and prevent unnecessary wear on electrical components.
Common Mistakes to Avoid
Overloading a motion sensor beyond its wattage rating can lead to inconsistent performance. Mixing up line and load wires at the sensor can prevent the system from functioning. Loose connections or exposed wires may result in flickering or intermittent operation. Failing to leave extra wire length at junction boxes can complicate maintenance. Placing sensors near reflective surfaces or moving objects may cause false triggers. Awareness of these potential pitfalls encourages careful planning, better installation, and safer, more reliable operation.
Frequently Asked Questions
How many lights can I connect to one motion sensor?

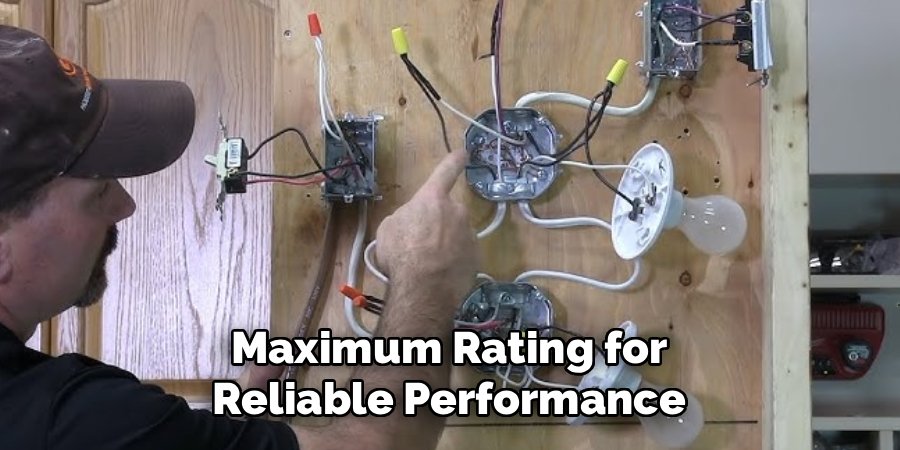

The number of lights depends on the sensor’s maximum load capacity. Add up the wattage of all bulbs and ensure the total is below the sensor’s rating. For example, four 60-watt bulbs total 240 watts; the sensor should handle more than this to operate safely. Energy-efficient bulbs can allow more fixtures on a single sensor. Always leave headroom below the maximum rating for reliable performance.
Can I wire a motion sensor to an existing light controlled by a switch?
Yes, a sensor can integrate with an existing switched circuit. You can replace the switch with the sensor or add the sensor alongside the switch. In the second setup, the switch acts as a master control while the sensor still regulates lights based on motion. Properly routing power ensures the circuit operates safely, giving flexibility for manual override without compromising the sensor’s function.
What is the best way to wire multiple lights to a sensor?
Parallel wiring is the standard method. The sensor’s load wire connects to each light’s hot wire, while neutral wires are grouped together. This ensures each fixture receives full voltage independently. Running cables from the sensor to the first light, then chaining to subsequent lights, maintains uniform power and keeps all lights responsive, even if one bulb fails.
How do I troubleshoot if my lights aren’t working after installation?
Turn off the breaker and confirm with a voltage tester. Inspect connections for secure wire nuts, correct line/load arrangement, and functional bulbs. Check sensor settings for sensitivity, timer, and light-level adjustments. Re-examine the wiring diagram to ensure continuity through each fixture. Resolving these common issues usually restores proper operation without replacing components.

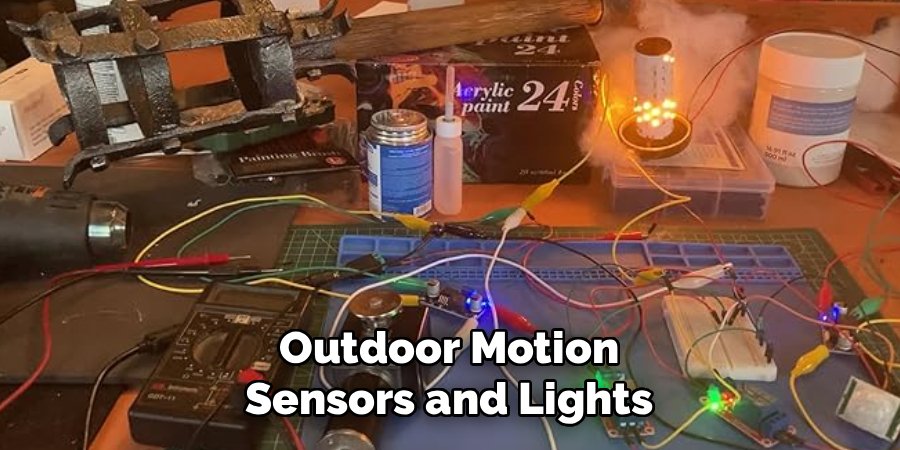

Do I need a special type of wire for outdoor motion sensors and lights?
Yes, outdoor installations require wire rated for moisture and sunlight, such as UF-B cable. Indoor-rated wires like NM-B may deteriorate when exposed to weather, leading to hazards. Always follow local codes for wire type and installation method. Using outdoor-rated wire ensures durability, safe operation, and compliance with electrical standards.
Conclusion
Learning how to wire a motion sensor to multiple lights allows homeowners to create safe, efficient, and reliable automated lighting. By planning carefully, using proper tools and materials, and observing electrical safety precautions, you can ensure all fixtures work together seamlessly. Following responsible installation methods and attention to detail will provide long-term reliability, peace of mind, and convenient illumination throughout your home. Proper planning and mindful execution make this a rewarding and practical project.
