Setting up a home security system can feel like a big project, but it’s a manageable and rewarding one. A key part of this process is understanding how to install security camera wiring safely and effectively. This guide is designed to walk you through the entire process with clear, reassuring steps.
We’ll cover everything from planning the layout to connecting the final cable. Our goal is to provide you with the knowledge to handle this task with confidence, ensuring your system is installed correctly for improved safety and peace of mind. By breaking down the process into simple stages, we’ll demystify the technical aspects and focus on a smooth, successful installation. You don’t need to be a professional electrician to get this done; you just need the right guidance and a careful approach. Let’s begin this journey to enhance your home’s security together, one step at a time.
Understanding Security Camera Wiring
Security camera wiring is the physical network of cables that provides power to your cameras and transmits video data back to a central recording device or monitor. This network is the backbone of any wired surveillance system, ensuring a stable and reliable connection. Unlike wireless systems that can be affected by signal interference, a wired setup offers consistent performance. Proper installation is key to its effectiveness.
Preparing for Your Installation
Before you drill any holes or run any cables, taking a moment to plan is essential. This preparatory stage ensures a smoother process and a more effective outcome. Thinking ahead about camera placement, cable routes, and necessary tools will save you time and prevent potential headaches later. A little bit of foresight goes a long way in making your security camera installation a successful and satisfying project.
The Importance of Proper Installation
Correctly installing your security camera wiring is crucial for the system’s reliability and your safety. Improperly run cables can lead to signal loss, power issues, or even damage to your equipment. There are also potential risks associated with working with electrical components, however minimal. By following established procedures and safety measures, you ensure your cameras function as intended and avoid creating any new hazards. A well-installed system is a dependable one, giving you the consistent protection you expect.
Common Situations You Should Be Aware Of
When installing wiring, be mindful of common issues that can affect performance. Running data cables too close to high-voltage electrical lines can cause interference, which may degrade your video quality. Another potential issue is physical damage to the cables themselves, either from sharp bends, staples puncturing the sheathing, or exposure to the elements without proper protection. Being aware of these situations allows you to plan your cable routes thoughtfully and protect the integrity of your surveillance system from the start.
Tools and Materials You’ll Need
- Security Cameras and DVR/NVR: The core components of your system.
- Siamese Coaxial Cable (for analog systems) or Ethernet Cable (for IP systems): The wiring for power and video.
- Power Supply: To provide electricity to the cameras.
- BNC Connectors (for analog) or RJ45 Connectors (for IP): To terminate the cable ends.
- Drill and Drill Bits: For creating holes to run cables through walls.
- Fish Tape or Glow Rods: To help pull cables through walls and ceilings.
- Wire Strippers and Crimping Tool: For preparing and terminating the cables.
- Screwdrivers and Pliers: For mounting cameras and general tasks.
- Ladder: For reaching high mounting locations.
- Safety Glasses and Gloves: Protective equipment for drilling and handling tools.
- Cable Clips or Staples: To secure the wiring along its path.
7 Powerful Steps on How to Install Security Camera Wiring
Step 1: Plan Your Camera Layout and Cable Routes
Simple Precaution: Before you begin, take a walk around your property to map out the best camera locations and cable paths. This planning phase helps you visualize the entire project, reducing the chance of unexpected issues and ensuring you have enough cable for the job. A good plan is your best tool for improved safety.
Step Explanation:
The first, and most critical, step is creating a detailed plan. Identify the key areas you want to monitor, such as entry points, driveways, and backyards. For each location, determine the best mounting spot for the camera to achieve the desired field of view. Consider factors like height—high enough to be out of easy reach but low enough to capture clear details. Once you’ve chosen your camera spots, map out the most discreet and efficient route for the wiring to travel from each camera back to your Digital Video Recorder (DVR) or Network Video Recorder (NVR). The ideal path is often through an attic, crawlspace, or along the exterior under eaves. Try to minimize the length of the cable runs and avoid paths that cross high-traffic areas or are difficult to access. Sketching this plan on paper can be incredibly helpful. This careful planning prevents you from drilling unnecessary holes and ensures your protective equipment is deployed for maximum effectiveness.

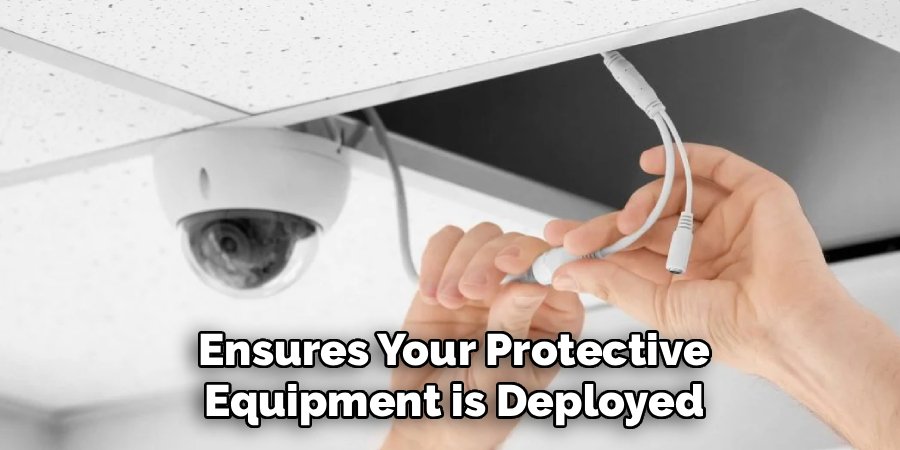

Step 2: Run the Cables from Camera Locations to the Recorder
Simple Precaution: When pulling cables, always wear safety glasses to protect your eyes from falling debris, especially when working in attics or drilling through walls. Also, be gentle with the cables; pulling too hard can damage the internal wires and compromise your system’s performance.
Step Explanation:
With your plan in hand, you can begin the physical task of running the wires. Start at the location of your DVR or NVR and run a separate cable to each planned camera location. If you are routing cables through walls or ceilings, this is where fish tape or glow rods become invaluable. Drill a small, clean hole where the cable will enter or exit the wall. Attach the cable to the end of the fish tape and carefully guide it through the wall cavity to the other side. For attic or crawlspace runs, you can often lay the cable along joists, securing it with cable clips every few feet to keep it neat and out of the way. Take care to avoid kinking the cable or making sharp 90-degree bends, as this can impede the signal. Proper usage of your tools and a patient approach are key safety measures during this step to ensure the wiring remains intact.

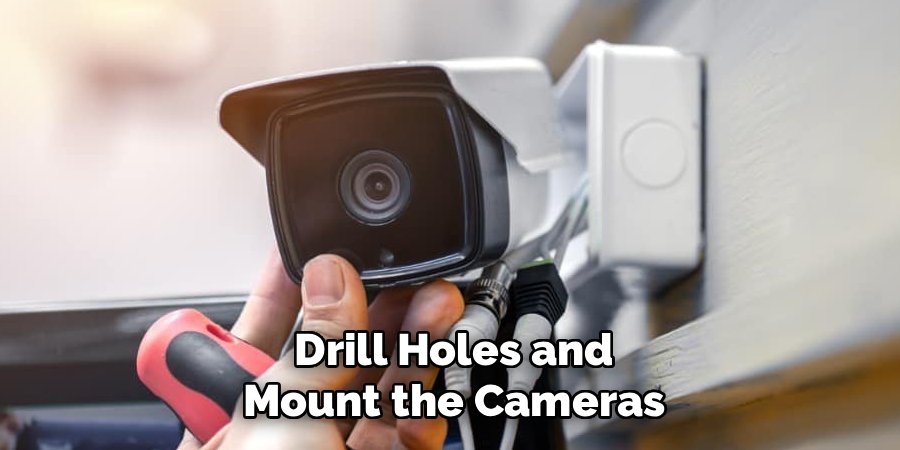

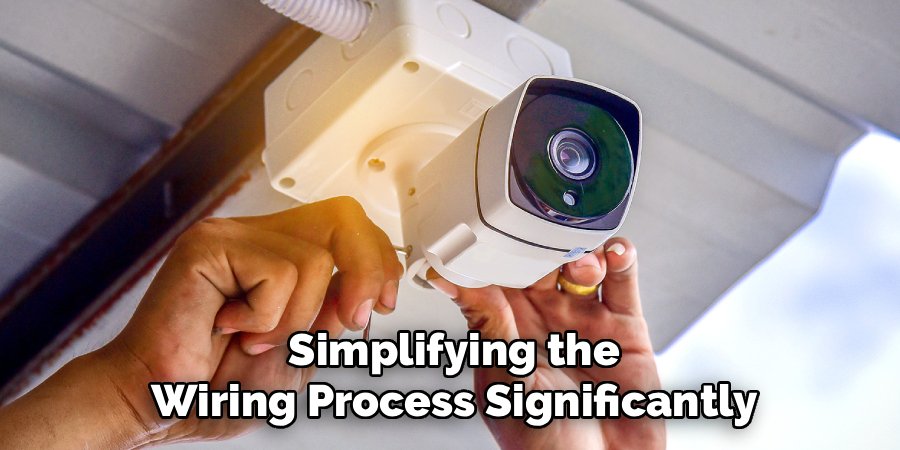

Step 3: Drill Holes and Mount the Cameras
Simple Precaution: Before drilling any holes in exterior walls, check for the presence of electrical wiring or plumbing behind the surface. A stud finder with AC detection can help identify potential risks. Always use a sturdy ladder and have a spotter if possible when working at height for better protection against falls.
Step Explanation:
Now it’s time to mount your cameras. At each designated location, drill a hole large enough for the camera’s connector to pass through to the inside. For outdoor installations, it’s a good practice to drill from the inside out, slightly angling the hole downwards towards the exterior. This angle helps prevent water from running along the cable into your wall. Once the hole is drilled, feed the camera’s cable pigtail through it. Position the camera’s mounting bracket over the hole and mark the locations for the mounting screws. Drill pilot holes for the screws, then securely fasten the camera to the wall or eave. Make sure the camera is firmly attached and pointing in the general direction you planned. You can fine-tune the angle later. Applying a small amount of silicone sealant around the hole on the exterior wall adds an extra layer of weatherproofing.

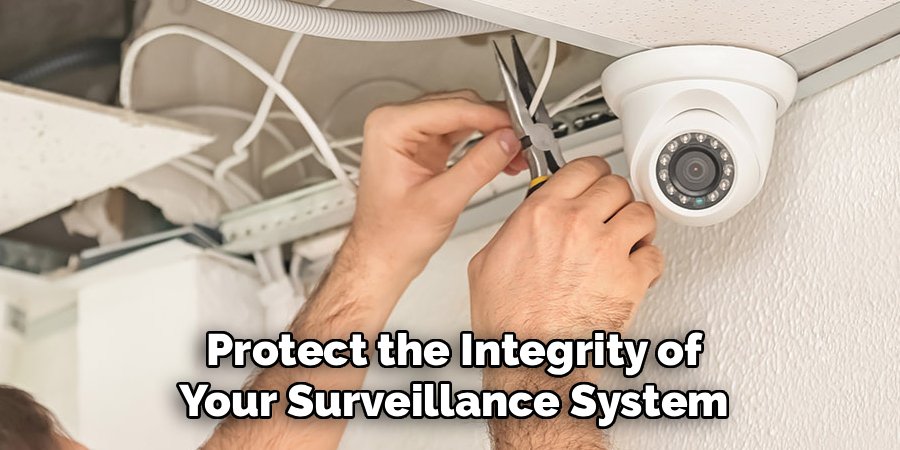

Step 4: Prepare and Connect the Cable Ends at the Camera
Simple Precaution: When stripping and crimping wires, ensure the power supply is completely disconnected to eliminate any possible harm from electrical currents. Use the correct stripping tool for your cable type to avoid nicking the delicate inner conductors, which could lead to a poor connection.
Step Explanation:
This step involves terminating the cable at the camera end. For analog systems using Siamese cable, you’ll have two parts: the RG59 coaxial cable for video and the 18/2 wire for power. Strip the outer jacket of the coaxial cable, peel back the braided shielding, and strip the inner conductor. Attach a BNC connector by sliding it over the prepared cable and using a crimping tool to secure it. For the power wires, simply strip a small amount of insulation from the red (positive) and black (negative) wires. Connect these to the camera’s power pigtail, ensuring the polarity is correct. For IP systems using Ethernet cable, the process involves arranging the eight small wires in the correct color order (typically T-568B), trimming them to be even, and inserting them into an RJ45 connector. Use an Ethernet crimper to firmly press the connector’s pins into the wires.

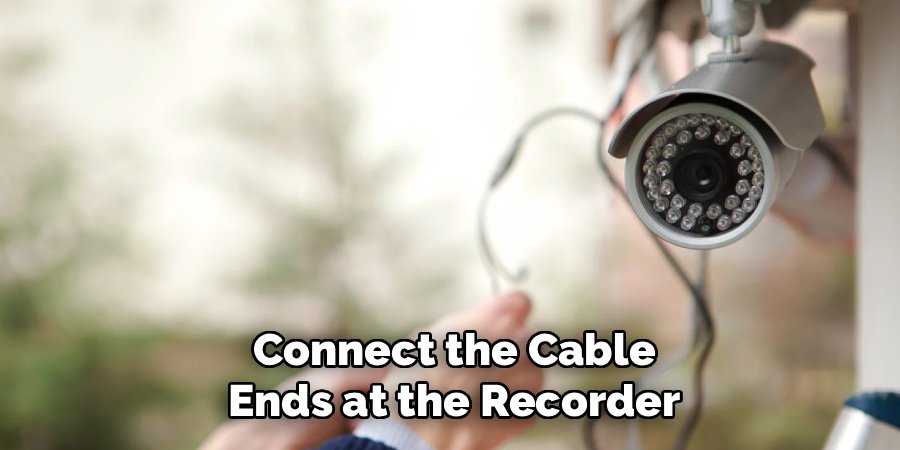

Step 5: Prepare and Connect the Cable Ends at the Recorder
Simple Precaution: Organize your cables neatly behind your recording unit before connecting them. This not only looks better but also prevents cables from being accidentally pulled or strained. Labeling each cable with the corresponding camera number makes future troubleshooting much easier and is an excellent everyday precaution.
Step Explanation:
The process at the recorder end mirrors the camera end. For each cable you run, you will create a connection for the DVR or NVR. With an analog system, you will attach another BNC connector to the coaxial portion of the cable. This BNC connector will plug directly into one of the video input ports on the back of your DVR. The power wires will connect to the central power supply box or a power adapter splitter. Again, pay close attention to the positive and negative polarity. For an IP camera system, you’ll crimp another RJ45 connector onto the Ethernet cable. This end will plug into one of the PoE (Power over Ethernet) ports on the back of your NVR or into a separate PoE switch. This single Ethernet connection provides both power and data to the camera, simplifying the wiring.
Step 6: Power Up and Test the System
Simple Precaution: Before you plug in the main power supply for the DVR/NVR and cameras, do a final visual check of all your connections. Ensure every connector is seated firmly and that there are no exposed wires touching each other. This quick review helps prevent short circuits and protects your equipment.
Step Explanation:
This is the moment of truth. Connect your DVR or NVR to a monitor and plug in its power adapter. Then, connect and turn on the main power supply for your cameras. As the system boots up, you should see a live feed from each connected camera appear on your monitor. Check each camera one by one to confirm you have a clear, stable picture. If a camera isn’t displaying, the issue is most likely a bad connection at either the camera or the recorder end. Carefully re-check your BNC or RJ45 connectors and power connections for that specific cable run. This testing phase is an essential safety measure to confirm that all your previous steps were successful before you finalize the installation.

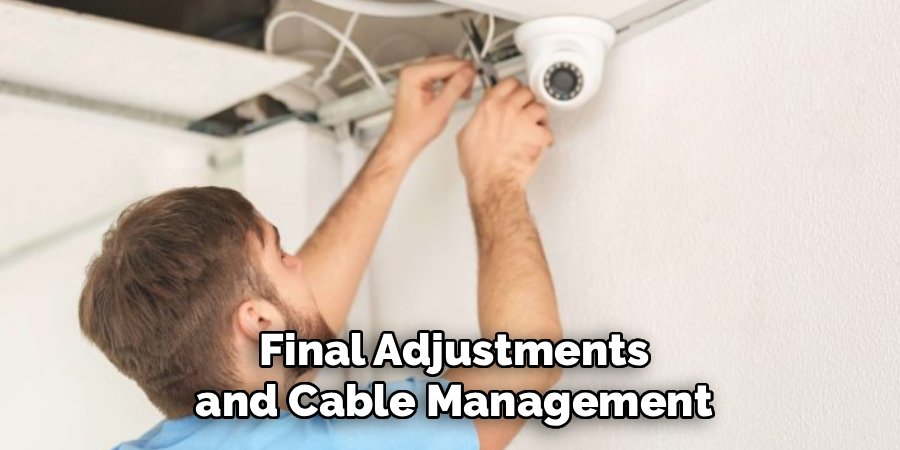

Step 7: Final Adjustments and Cable Management
Simple Precaution: When tidying up your cables, use plastic cable clips or zip ties instead of metal staples. Metal staples can puncture the cable jacket if hammered in too forcefully, which could damage the wires inside and disrupt your video signal. Securing cables properly reduces the potential risk of them being snagged or pulled.
Step Explanation:
Once you’ve confirmed every camera is working perfectly, it’s time for the finishing touches. Go back to each camera and adjust its final angle and field of view to ensure it covers the intended area perfectly. Most cameras have a locking screw or collar to fix them in position. After setting the angles, focus on cable management. Neatly secure any loose wiring along the baseboards, in the attic, or along the eaves using cable clips. This not only makes the installation look professional but also protects the cables from damage. Behind your recorder, use zip ties or velcro straps to bundle the excess cable and create a clean setup. A tidy installation is easier to manage and troubleshoot in the future, completing your project with a focus on both function and form.
Simple Safety Tips You Can Use
When working on any home project, your personal safety is the top priority. Always wear appropriate protective gear, like safety glasses when drilling and gloves when handling tools. If you’re using a ladder, make sure it is on stable, level ground and never overreach. It is always better to get down and move the ladder. Be aware of your surroundings, especially hidden electrical wires or pipes within walls. When in doubt, it’s wise to turn off the main power to the circuit you are working near.
Common Mistakes to Avoid
A common oversight is choosing the wrong type of cable for the job, such as using indoor-rated cable for an outdoor run where it will degrade over time. Another mistake is creating sharp bends or kinks in the wiring, which can damage the internal conductors and lead to signal loss. Many people also forget to properly weatherproof outdoor connections, leaving them vulnerable to moisture and corrosion. Finally, failing to plan cable routes can result in a messy installation that is difficult to troubleshoot and more susceptible to accidental damage.
Frequently Asked Questions
How long can a security camera cable be?
The maximum length of a security camera cable depends on the type of cable and system you are using. For standard analog cameras using RG59 Siamese cable, you can typically run the cable up to 800 feet without significant video quality loss. For high-definition analog cameras, this distance might be slightly shorter. If you are using an IP camera system with Cat5e or Cat6 Ethernet cable, the standard maximum length is 328 feet (100 meters). For runs longer than these limits, you may need to use a signal booster or a PoE extender to maintain signal integrity.
Can I run security camera wires next to electrical wires?
It is generally recommended to avoid running security camera wires, especially analog coaxial cables, parallel to AC electrical wires for long distances. High-voltage electrical lines can create electromagnetic interference (EMI), which can show up as lines, static, or distortion on your video feed. If you must cross an electrical wire, do so at a 90-degree angle to minimize the potential for interference. For best results, try to maintain at least 12 inches of separation between your low-voltage camera cables and any high-voltage power lines. Shielded Ethernet cable (STP) can offer better protection against EMI for IP camera installations.
What is the difference between DVR and NVR wiring?
The main difference lies in the type of cable and the way power is delivered. A DVR (Digital Video Recorder) system is used for analog cameras and typically uses Siamese coaxial cable. This cable consists of an RG59 coax cable for video transmission and a separate pair of wires (18/2) for power. This means you have to manage two connections at each end: a BNC connector for video and a power jack. An NVR (Network Video Recorder) system is for IP cameras and uses an Ethernet cable (like Cat5e or Cat6). In most cases, NVRs use Power over Ethernet (PoE), which sends both power and data through a single Ethernet cable, simplifying the wiring process significantly.
Conclusion
Learning how to install security camera wiring is a practical skill that puts you in direct control of your home’s security infrastructure. By following these steps carefully, from planning and routing to connecting and testing, you can achieve a professional-quality installation that is both reliable and effective. Remember that patience and attention to detail are your best allies in this project. A well-installed system not only provides clear video feeds but also gives you the confidence that comes from knowing the job was done right. We encourage you to use this knowledge responsibly to create a safer environment for yourself and your loved ones.
