Installing or rewiring a garage door opener can seem like a big project, but understanding the basics makes it manageable and safe. Learning how to wire a Chamberlain garage door opener ensures that your unit operates reliably while maintaining all safety features. Proper electrical connections help the system communicate effectively with sensors, wall controls, and remotes.
This guide will walk you through the wiring process in clear, beginner-friendly terms, emphasizing careful preparation, organized work, and practical safety measures. By following a methodical approach, you can complete this task confidently and ensure the long-term performance of your garage door system without unnecessary stress.
What is a Garage Door Opener Wiring System?
A garage door opener wiring system consists of the electrical connections that power the motor and link the safety components. It includes the main power cord, low-voltage wires for the wall-mounted control panel, and the safety sensor wiring. Each wire has a specific function, allowing the motor, sensors, and control units to communicate. These connections create a system that opens and closes the garage door reliably and safely. Understanding how this network works helps homeowners manage installation or troubleshooting with clarity, ensuring every component functions properly while reducing the risk of issues from incorrect wiring.
Preparing Yourself for the Wiring Process
Before handling any wires, it’s helpful to take a moment to prepare. Reviewing the Chamberlain owner’s manual provides clarity on diagrams and component terminology. Gathering tools, arranging a clean workspace, and ensuring proper lighting sets the stage for a smooth installation. Approaching the wiring task calmly, with organization and protective equipment, prevents mistakes and allows for efficient work. Think of this as setting up the right conditions to succeed rather than preparing for a challenge. This preparation lays the foundation for a safe, reliable, and streamlined process.
The Importance of Correct Wiring

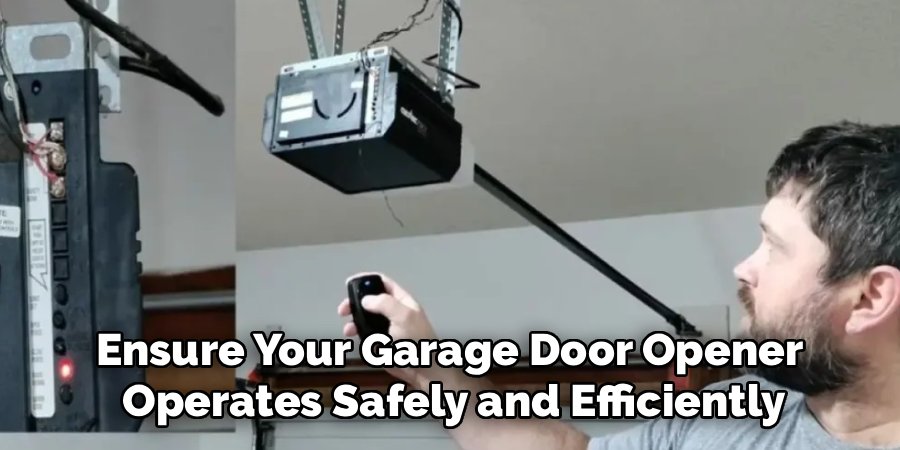

Correct wiring is essential to ensure your garage door opener operates safely and efficiently. Improper connections can interfere with critical features such as auto-reverse sensors or wall control communication. Crossed or loose wires may prevent safety mechanisms from functioning, which could allow the door to operate incorrectly. By following manufacturer guidance, homeowners maintain full functionality and safeguard against potential issues. Proper wiring not only protects your family but also preserves the longevity of the equipment. When connections are secure and accurate, the system performs smoothly, providing consistent convenience and reliable safety in daily use.
Common Situations You Should Be Aware Of
Even with a well-installed opener, minor situations may arise that require awareness. Safety sensors can become misaligned if bumped or moved. Vibrations over time may loosen wire connections at the motor unit. Electrical surges or power interruptions can also temporarily disrupt functionality. Recognizing these scenarios helps you identify small, correctable issues without assuming major failures. If the wall control does not light up or remotes are unresponsive, it is often related to simple wiring or power situations rather than mechanical damage. Understanding these possibilities supports proactive maintenance and long-term reliability.
Tools and Materials You’ll Need
- Chamberlain Owner’s Manual – model-specific guidance for diagrams and instructions
- Safety Glasses – protect eyes from dust and debris
- Step Ladder – for safe access to ceiling-mounted components
- Wire Strippers/Cutters – for preparing low-voltage wires
- Screwdrivers (Phillips and Flathead) – secure wires to terminals
- Drill with 3/16″ bit (optional) – for routing wires through walls or ceilings
- Insulated Staples or Wire Clips – secure wires neatly along surfaces
- Two-strand bell wire – usually included for sensors and wall control
Step‑by‑Step Guide: How to Wire a Chamberlain Garage Door Opener
Step 1: Prepare Your Workspace and Disconnect Power

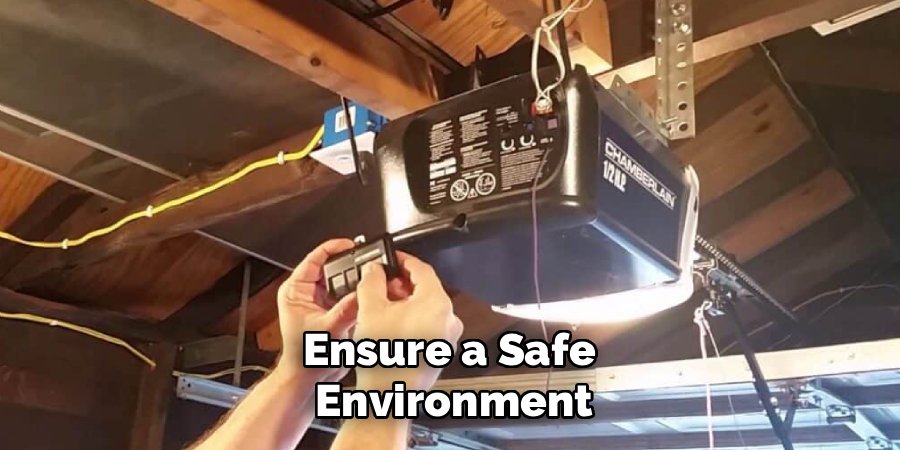

Before touching any wires, ensure a safe environment. Unplug the opener or switch off the relevant circuit breaker if hardwired. Mark the breaker with tape to prevent accidental activation. Confirm that the opener is powerless by pressing the wall control. Ensure your ladder is stable on level ground and remove any obstacles from the workspace. Creating a calm, organized area reduces potential risk and allows you to focus fully on the wiring task.
Step 2: Run the Wires for the Wall Control Panel
Begin by running the two-strand bell wire from the wall-mounted panel to the motor unit. Secure the wire using insulated staples or clips along the wall and ceiling, leaving about six inches of slack at each end. Avoid over-tightening, which could pinch the wire. This organized routing reduces wear over time and ensures proper communication between the control panel and motor. Clear pathways also make future adjustments simpler and safer.
Step 3: Connect the Wires to the Wall Control Panel
Strip about half an inch of insulation from each wire end. The red-striped wire connects to the “R” terminal, while the solid white wire connects to the “W” terminal on the wall control panel. Ensure the wires are wrapped clockwise and tightened securely, avoiding stray strands. This careful connection ensures the wall control communicates effectively with the opener, maintaining safety and reliable operation for daily use.
Step 4: Run the Wires for the Safety Sensors
The safety sensors prevent the door from closing on obstacles. Run separate wires from each sensor to the motor unit, keeping them away from moving components. Mount the sensors on either side of the garage door, no more than six inches from the floor. Secure the wires neatly and leave a small amount of slack at each connection point. Properly routed wiring prevents signal interruptions and ensures the sensors operate reliably, supporting better protection in everyday operation.

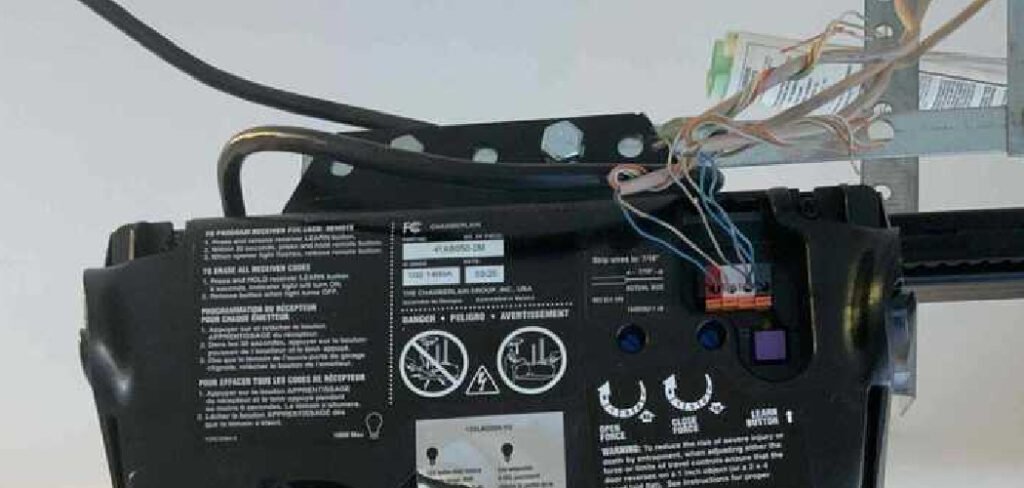

Step 5: Connect the Wires to the Safety Sensors and Motor Unit

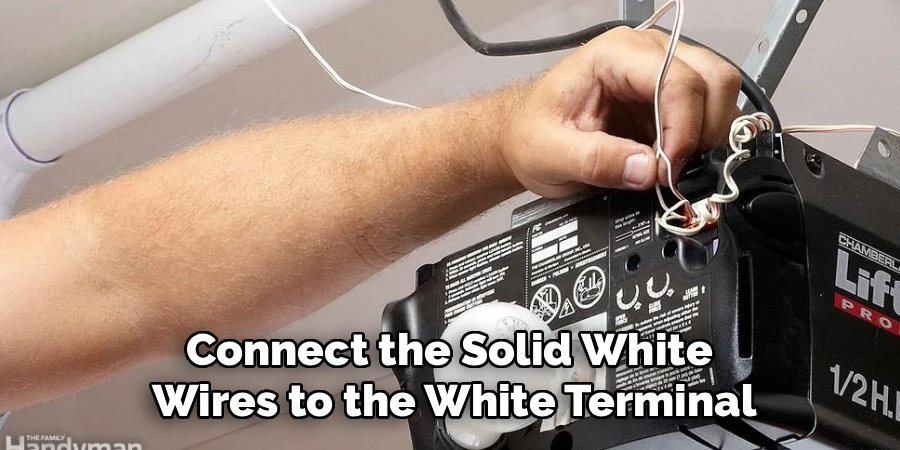

Strip the ends of the sensor wires. Connect the solid white wires to the white terminal on the motor and the black-striped wires to the gray terminal. Attach the wall control wires to the designated terminals alongside sensor wires. Ensure connections are secure and separated by terminal type. Accurate wiring ensures the opener responds correctly to signals from sensors and controls, maintaining safety measures and overall system reliability.
Step 6: Power On and Test the System
Once connections are complete, restore power by plugging in the opener or flipping the circuit breaker. The wall control LED should illuminate, and sensor lights should be solid. Operate the door using the wall control and test the sensors by placing an object in the door’s path; the door should reverse immediately. This final check confirms all wiring is correct and safety systems are functioning, providing confidence in the performance of your garage door opener.
Simple Safety Tips You Can Use
- Keep sensor areas clear of boxes, tools, or other objects.
- Wear safety glasses when working near wires or above head height.
- Test the auto-reverse feature regularly using a small, safe object.
- Teach family members how safety features work.
- Avoid running wires near moving chains or belts.
How to Stay Safe in Everyday Situations
- Home: Maintain clear pathways near the door and sensors.
- Family: Educate children about proper use and avoid playing with remotes.
- Furniture/Lifestyle: Avoid storing tall objects in the door’s path.
- Pets: Keep animals clear of the garage door area during operation.
These simple practices help prevent accidental disruptions and support consistent functionality.
Common Mistakes to Avoid
- Forgetting to disconnect the power before starting work.
- Over-tightening or under-tightening terminal screws.
- Running wires near moving parts.
- Mounting sensors too high or misaligned.
- Ignoring wiring diagrams or manual instructions. Awareness of these points improves installation quality and reduces potential issues.
Frequently Asked Questions
What do the different colored wires mean on a Chamberlain opener?

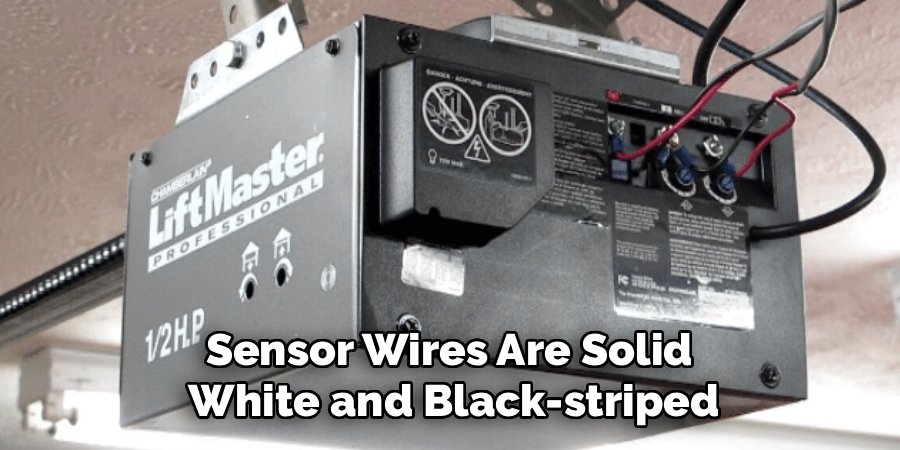

Colored wires simplify installation. Wall control wires include a solid white and a red-striped wire. The red-striped wire connects to the “R” terminal, and the white wire to “W.” Sensor wires are solid white and black-striped, with the white wires connecting to the white terminal and black-striped to the gray terminal. These standards make wiring intuitive while maintaining proper signal flow. Always confirm your model’s specifics using the manual.
Can I use any type of wire for my garage door opener?
No. Use low-voltage two-conductor bell wire as provided or recommended by Chamberlain. Other wires may not conduct signals correctly, causing intermittent or failed sensor and wall control operation. Using the correct wire ensures safety, compatibility, and reliable daily performance.
Why are my safety sensor lights blinking?
Blinking lights indicate misalignment or obstruction. Ensure sensors are facing each other directly and remove any objects blocking the path. Both LED lights must be solid for proper operation. Adjusting alignment carefully restores communication between sensors and maintains safety measures.
How do I wire a Chamberlain garage door opener to a switch?
The included wall control panel acts as the primary switch. Do not attempt to wire the main power cord to a household switch. The opener requires continuous power from a grounded outlet. Low-voltage connections between the wall control and motor unit allow safe operation while keeping the system powered.
What happens if I wire the garage door opener incorrectly?
Incorrect wiring may disable the wall control, prevent sensor functionality, or interrupt safe operation. The logic board may display diagnostic codes if connections are wrong. Following wiring diagrams carefully ensures safety, reliable operation, and proper functioning of auto-reverse and other protective features.
Conclusion
Learning how to wire a Chamberlain garage door opener is straightforward when approached with preparation and attention to detail. By carefully following manufacturer instructions, disconnecting power before starting, and testing safety systems after installation, you can achieve a reliable and safe setup. Proper wiring enhances convenience, supports long-term functionality, and ensures that protective features operate as intended. With patience and organized practice, your opener will provide consistent, safe performance, giving peace of mind and dependable operation for years to come.
