Many vehicle owners eventually face a moment when their car refuses to start, not due to a mechanical failure, but because of a built-in security protocol. When the security light flashes unexpectedly, it often signals that the Passlock system has disabled the fuel injectors to prevent unauthorized access. This technology was designed to protect your investment by ensuring that only the correct key rotation can engage the engine.
However, sensors can sometimes become sensitive or misaligned, leading to a situation where the car believes it is being tampered with, even when the rightful owner is in the driver’s seat. It is important to approach this situation with patience rather than frustration. The system is simply doing its job a little too well. By understanding how to reset passlock, you can resolve the issue effectively. This guide aims to walk you through the standard relearn procedure, helping you get your vehicle back on the road without unnecessary stress or expense.
User Responsibility Notice
This information is provided strictly for educational purposes for vehicle owners who need to address legitimate maintenance issues with their personal property. It is assumed that you are the lawful owner of the vehicle or have explicit permission to perform maintenance on it.
Please ensure you are following all local regulations regarding vehicle repairs. The goal is to restore normal functionality to your daily transport through responsible, safe, and standard maintenance procedures. Always prioritize safety and proper handling of your vehicle.
What Is This Security Feature?
The term refers to a specific type of General Motors anti-theft technology introduced in the 1990s. Unlike earlier systems that used a chip embedded in the key itself, this mechanism relies on the ignition lock cylinder housing.
When you rotate the key, a magnet on the cylinder passes a sensor. This generates a specific voltage code that must match the value stored in the vehicle’s computer. If the data matches, the engine starts; if not, fuel is cut off.
Getting Ready for the Process
Before you attempt any procedures, it is helpful to take a moment to clear your schedule. The process you are about to undertake is not difficult, but it is time-sensitive and cannot be rushed.
Ensure your vehicle is parked in a safe, legal location where it can remain stationary for up to forty-five minutes. Having a calm mindset will make the steps much easier to follow and ensure success.
Why This System Matters
The importance of this automotive defense mechanism lies in its ability to deter theft without requiring complicated driver interaction. It works passively in the background every time you start your car.
While it can be inconvenient when it glitches, the system provides a significant layer of protection for your vehicle. It prevents “hot-wiring” by disabling the fuel supply, ensuring that forcing the ignition lock won’t result in a running engine. Understanding its value helps frame the reset process as a necessary maintenance task rather than just a nuisance.
Common Situations You Should Be Aware Of
There are several standard scenarios where this security protocol might engage unexpectedly. Often, it happens after the vehicle battery has been replaced or disconnected for repairs, causing the computer to lose its stored reference.
It can also occur if the ignition cylinder is worn out from years of use or if a new key has been cut that doesn’t quite match the wear pattern of the old lock. Cold weather can sometimes affect sensor resistance, triggering a temporary lockout. Being aware of these triggers helps you stay calm.
Tools and Materials You’ll Need
- Fully Charged Battery: The process consumes power, so a healthy battery is vital.
- Battery Charger or Jumper Cables: Optional, but recommended to maintain voltage.
- Timekeeping Device: A watch or phone timer is essential for accuracy.
- The Ignition Key: The standard key you use for the vehicle.
- Owner’s Manual: Good for referencing specific dashboard light meanings.
- Comfortable Seating: You will be in the vehicle for a while.
6 Effective Steps on How to Reset Passlock
Step 1: Battery Health Verification
Simple Precaution:
Before beginning, ensure your vehicle is in a well-ventilated area, as you will eventually be starting the engine. Check that all unnecessary accessories like the radio, air conditioning, and headlights are turned off to preserve power during this extended process.
Step Explanation:
The first and most critical step is ensuring your power supply is robust enough to handle the procedure. Because the reset involves leaving the ignition in the “On” position for extended periods without the engine running, there is a significant drain on the electrical system. If the voltage drops too low during the relearn sequence, the body control module may not store the new sensor data correctly, forcing you to start over.
Connect a battery charger if you have one available, setting it to a low maintenance charge. If you do not have a charger, ensure your battery was fully charged beforehand. This step is often overlooked, leading to failed attempts. By guaranteeing a steady flow of electricity, you are providing the vehicle’s computer with the stable environment it needs to communicate with the ignition sensors. This foundation ensures that the subsequent waiting periods are productive and not wasted due to power loss.
Step 2: Initial Ignition Engagement
Simple Precaution:
Sit comfortably in the driver’s seat and close all doors. Ensure the gear selector is firmly in “Park” (or “Neutral” with the parking brake set for manual transmissions) to prevent any unexpected movement when the electrical systems engage.
Step Explanation:
Insert your key into the cylinder and rotate it to the “Run” or “On” position. This is the position immediately before “Start” or “Crank.” It is crucial that you do not try to start the engine fully. If you accidentally crank the engine and it stalls, simply return the key to the “Off” position and wait a few seconds before trying again. The goal here is to wake up the vehicle’s dashboard and computer systems.

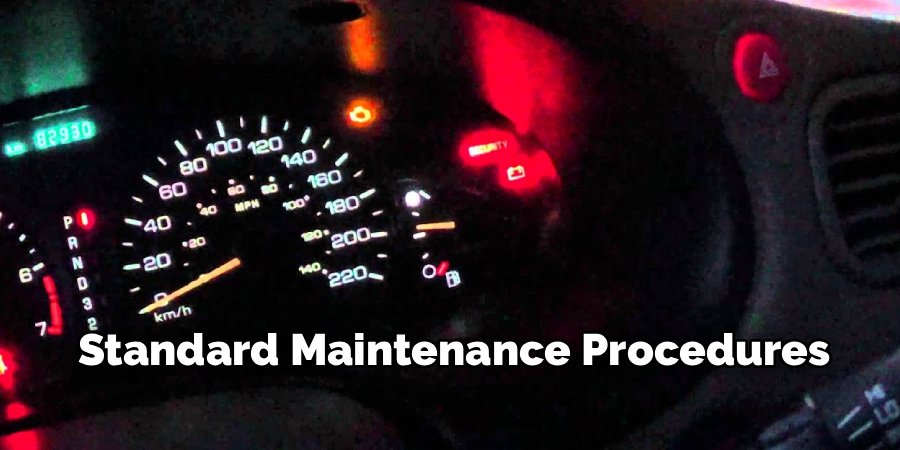

Once the key is in the proper position, look at your dashboard cluster. You should see the security warning light flashing or remaining illuminated solid. This light is your primary status indicator. The vehicle is now in a “learn mode” request state. It is attempting to read the resistance value from the lock cylinder. Do not disturb the key or the steering wheel during this time. The system needs to establish a clean baseline reading without mechanical interference or fluctuation.
Step 3: The First Observation Period
Simple Precaution:
Resist the urge to fiddle with the radio or windows while waiting. Electrical noise or voltage spikes from operating other components can interrupt the sensitive data transfer occurring between the sensor and the computer module.
Step Explanation:
This is the phase that requires the most patience. With the key in the “On” position and the engine off, you must wait for the security light to stop flashing or turn off completely. Typically, this duration is almost exactly ten minutes, but it can vary slightly depending on the model year. Set your timer for ten minutes, but rely on the visual cue of the light.
During this ten-minute window, the vehicle’s computer is effectively timing out the old security code and preparing to accept a new one. It is a safety feature designed to prevent rapid trial-and-error attempts by potential thieves. You must wait the full duration. If you turn the key off before the light stops flashing, the timer resets, and you must begin this step again. Use this time to relax and wait for the vehicle to verify that the key has remained in the cylinder consistently.
Step 4: Cycling the Ignition Sequence
Simple Precaution:
When the wait time is over, move your hand deliberately and smoothly. Jerky movements with the key can sometimes cause the cylinder to misread the position. Precision is more important than speed here.
Step Explanation:
Once the security light has stopped flashing or turned off (usually after the ten-minute mark), turn the ignition key to the “Off” position. You must leave it in the “Off” position for a specific count, typically five to ten seconds. This brief pause allows the computer to save the data it just acquired during the waiting period. Think of it as hitting the “Save” button on a document.
After the pause, you will need to repeat the previous engagement process. Turn the key back to the “On” position (do not crank the engine). Check the dashboard light again. It will likely resume flashing. You must now repeat the ten-minute waiting period a second time. This repetition confirms to the internal computer that the key presence is legitimate and not a momentary bypass attempt. The system requires multiple confirmations to permanently rewrite the stored security value.
Step 5: Completing the Third Cycle
Simple Precaution:
By this stage, your battery has been under load for twenty minutes. Check your dashboard lights to ensure they are not dimming significantly. If they are, you may need to hook up jumper cables to another running car to maintain voltage.
Step Explanation:
After the second ten-minute wait concludes and the light changes, turn the key to “Off” for ten seconds again. Then, turn the key back to “On” for the third and final time. You will observe the security light flashing once more. You must wait for a third ten-minute cycle. This usually completes the thirty-minute “relearn” procedure required by most General Motors vehicles equipped with this technology.
This triple verification process is the industry standard for resetting the protection module without a specialized scanner tool. It ensures that the resistance value sent by the ignition cylinder is consistent over a long duration. While it feels repetitive, every minute is necessary for the Body Control Module (BCM) to fully overwrite the previous code. Cutting this short will result in a mismatch, and the fuel injectors will remain disabled. Stay patient; you are almost at the finish line.
Step 6: Final Verification and Start
Simple Precaution:
Before the final start attempt, take a deep breath and ensure your foot is on the brake pedal. Be prepared for the engine to crank normally. If the battery is weak, you might need a jump start now.
Step Explanation:
Once the third ten-minute waiting period has finished and the security light has turned off, turn the key to the “Off” position. Leave it there for at least thirty seconds this time. This longer pause is the final commit command for the computer’s memory. The new data is now permanently stored as the valid security key.
Now, attempt to start the engine normally. Turn the key all the way to “Crank.” The engine should catch and run immediately, and the security warning light should remain off. If the car starts and runs, you have successfully reset the system. If the light is still on or the car stalls, you may need to repeat the entire process, paying closer attention to the timing, or inspect the battery voltage. However, in most cases, this completes the restoration of your vehicle’s function.
Simple Safety Tips You Can Use
To maintain the health of your vehicle’s electronics, always keep your key ring light. Heavy keychains can put excessive strain on the ignition cylinder, causing the sensors to wear out prematurely and triggering the Passlock defense mode.
Additionally, keep your battery terminals clean and tight. Voltage fluctuations are the enemy of automotive computers. Regularly inspecting your electrical connections can prevent the computer from getting confused and locking you out. Prevention is always more convenient than performing a thirty-minute reset in a parking lot.
Common Mistakes to Avoid
A frequent error is trying to start the car too early. If you turn the key before the full ten minutes are up (or before the light stops flashing), the timer resets to zero. Patience is the only way to bypass the timer logic.
Another mistake is neglecting the “Off” pause between cycles. The computer needs that brief moment of power-down to register the end of a cycle. Skipping this can confuse the module, making it think one long cycle occurred rather than three distinct ones. Always follow the timing strictly.
Frequently Asked Questions
Does the Security System Drain the Battery?
The security system itself uses very little power when the car is parked. However, the relearn procedure described above requires the ignition to be “On” for thirty minutes, which is a significant drain. If your battery is old or weak, the reset process itself can kill the battery. It is always wise to have a booster pack or jumper cables ready when performing the reset to ensure you don’t trade one problem for another.
Can I Bypass the Sensor Permanently?

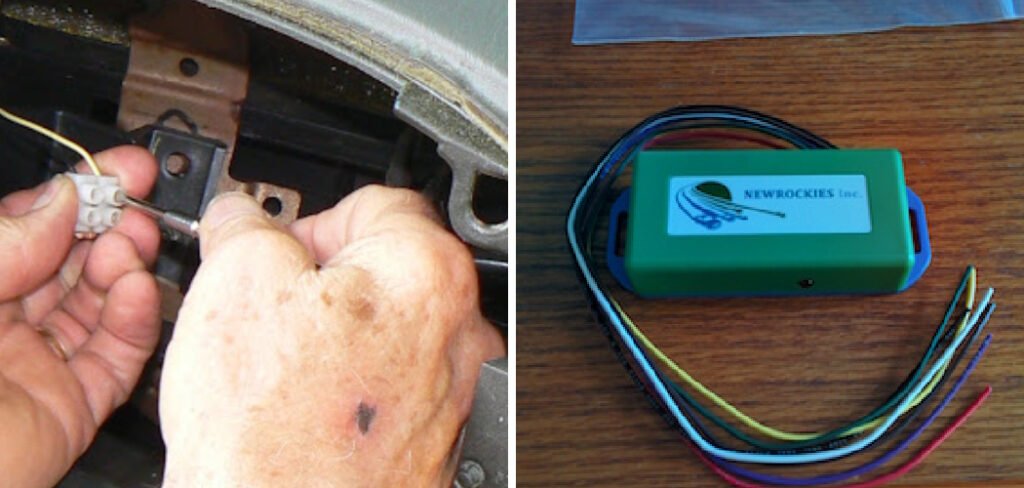

While it is technically possible to modify the wiring to bypass the sensor using resistors, this is not recommended for general vehicle maintenance. Doing so permanently disables a valuable anti-theft feature and can lead to insurance complications if the vehicle is ever stolen. It is far better to repair the system or perform the proper relearn procedure to keep the vehicle functioning as the manufacturer intended.
Why Does the Security Light Come On While Driving?
If the security light illuminates while you are driving, it indicates a fault in the system, but the engine will not shut off. This is a “fail-enable” mode designed to ensure safety while in motion. However, once you turn the engine off, the car may not restart. If you see the light while driving, drive directly to a safe location or a repair shop before turning off the ignition, as you may be locked out immediately after shutdown.
Conclusion
Successfully managing a Passlock reset requires patience and a clear understanding of the steps involved. By following the procedure carefully, you can often save yourself the cost of a tow truck or a dealership visit. Remember that these systems are designed to protect you, not to inconvenience you.
If the problem persists after multiple attempts, it may indicate a physical failure of the ignition housing or the sensor itself, which would require professional replacement. However, for most glitches and battery-related memory losses, the steps outlined above are the standard solution. Stay calm, watch the lights, and you will likely be back on the road in under an hour.
