Cam lock fittings are incredibly useful for creating quick and secure connections between hoses and pipes. They are widely used in various industries, from agriculture to manufacturing, because of their simplicity and reliability. While they are designed for ease of use, understanding the correct installation process is key to ensuring they function as intended.
This guide will walk you through how to install cam lock fittings safely and effectively. The goal is to provide clear, straightforward information that empowers you to handle this task with confidence. Proper installation helps prevent leaks and ensures a stable connection, contributing to a safer and more efficient setup for your fluid transfer needs. We will cover everything from the tools you need to common mistakes to avoid, all in a calm and reassuring manner.
User Responsibility Notice
This guide is intended for educational purposes for homeowners and other authorized users. The information provided is for lawful, responsible, and proper use of cam lock fittings in appropriate settings. All installations must be performed in accordance with local regulations and safety standards. This content does not endorse or provide instructions for any form of misuse.
What Are Cam Lock Fittings?
Cam lock fittings, also known as cam and groove couplings, are a simple and reliable method for connecting and disconnecting hoses and pipes quickly. They consist of two parts: a male “adapter” and a female “coupler.” The coupler has two arms (cams) that lock into a groove on the adapter, creating a secure and leak-proof seal. This design allows for a tool-free connection, making them a popular choice for many fluid transfer applications.
Preparing for a Smooth and Secure Installation
Getting your cam lock fittings installed correctly is a straightforward process when you’re well-prepared. Before you begin, taking a few moments to gather your tools and understand the components will make the entire task feel much easier. The following steps are designed to guide you through the process, ensuring each connection is secure and reliable. Let’s walk through it together, one step at a time.
The Importance of Proper Installation

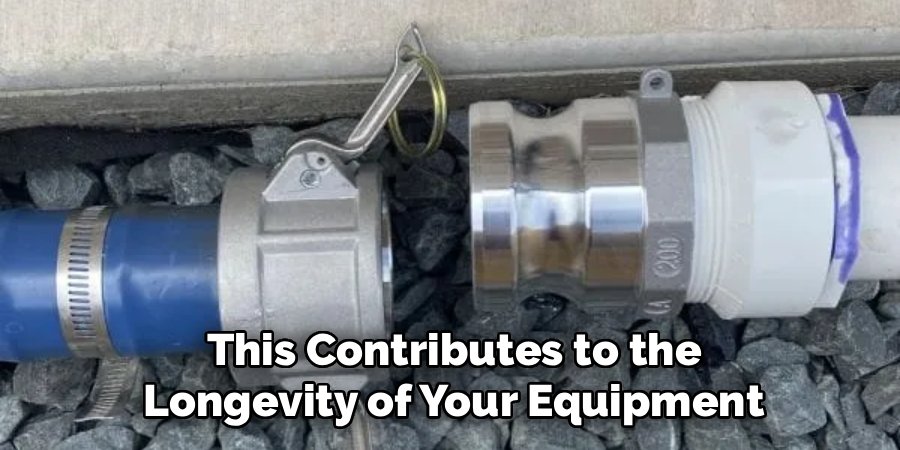

Properly installing your cam lock fittings is crucial for maintaining a safe and efficient system. A secure connection prevents leaks, which can lead to wasted materials, messy cleanups, and potential slip hazards. When fittings are correctly installed, you ensure that fluids flow smoothly without interruption. This contributes to the longevity of your equipment and the overall reliability of your operations, providing peace of mind and consistent performance.
Common Situations You Should Be Aware Of
Awareness of potential issues can help you maintain your cam lock fittings effectively. Problems often arise from worn-out gaskets, which can become brittle and crack over time. Another cause is mismatched fitting sizes or types, leading to an improper seal. Debris or dirt within the coupling can also prevent a secure connection. Regularly inspecting your fittings for these common situations helps ensure they continue to function as intended without any issues.
Tools and Materials You’ll Need
- Cam Lock Adapter (Male Fitting)
- Cam Lock Coupler (Female Fitting)
- Hose or Pipe for Connection
- Appropriate Hose Clamps (if connecting to a hose)
- Screwdriver or Nut Driver (for tightening hose clamps)
- Pipe Thread Sealant or Teflon Tape (for threaded connections)
- Safety Glasses
- Work Gloves
- Clean Rags
6 Essential Steps on How to Install Cam Lock Fittings
Step 1: Inspect Your Components
Simple Precaution: Before you begin, put on your safety glasses and gloves. Take a moment to inspect all your fittings and hoses for any signs of damage, such as cracks, dents, or excessive wear. A quick visual check is the first step toward a safe and successful installation.
Step Explanation:

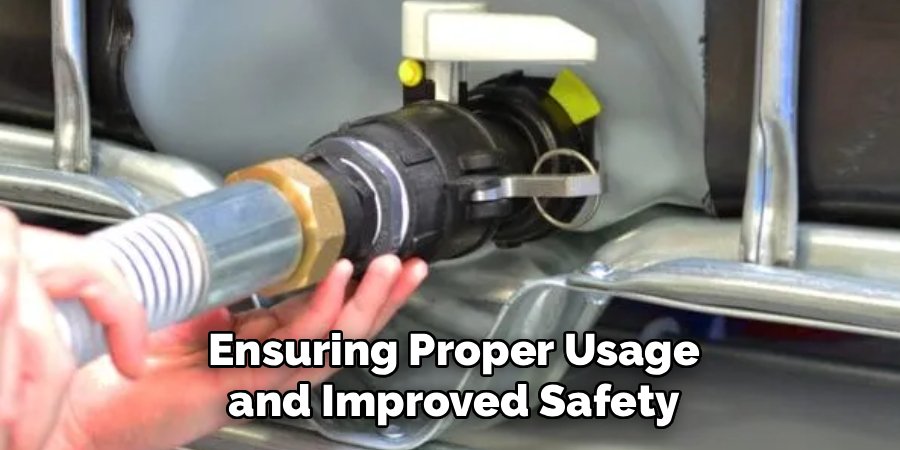

Step Explanation: A thorough inspection is a critical part of ensuring proper usage and improved safety. Check the male adapter for any deformities on the body or in the groove where the cams will lock. Examine the female coupler, paying close attention to the cam arms. They should move freely but feel secure. Also, inspect the gasket inside the coupler. It should be pliable and free of any nicks or cracks, as this rubber seal is what prevents leaks. If you are connecting to a hose, ensure the hose itself is in good condition without any splits or weak spots. Using components that are in poor condition presents a potential risk of failure. Taking a few minutes to confirm everything is in working order is a simple but effective safety measure that contributes to a reliable connection.
Step 2: Prepare the Hose or Pipe End
Simple Precaution: When preparing your hose or pipe, make sure your work area is clean and free of debris. This simple precaution helps prevent dirt and other particles from getting inside the connection, which could compromise the seal and lead to possible harm later on.
Step Explanation:
Step Explanation: If you are attaching the fitting to a hose, slide a hose clamp over the end of the hose first. Then, push the barbed or shank end of the cam lock fitting (either the adapter or coupler) fully into the hose. The hose should be pushed on until it covers all of the barbs for a secure grip. If you are connecting to a threaded pipe, preparation is slightly different. Clean the threads on both the pipe and the fitting to remove any old sealant or dirt. Apply a fresh layer of pipe thread sealant or wrap the male threads with two to three layers of Teflon tape in a clockwise direction. This preparatory step is vital for creating a leak-proof seal and demonstrates proper usage of the materials.

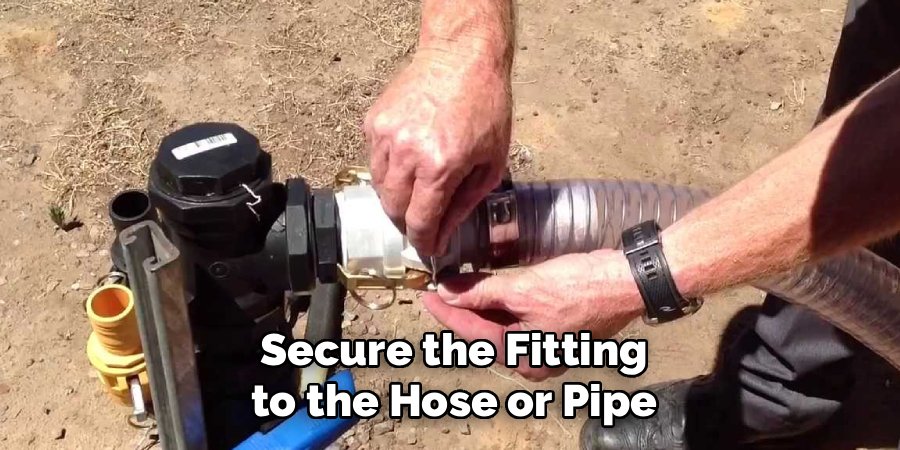

Step 3: Secure the Fitting to the Hose or Pipe
Simple Precaution: Ensure you have a firm grip on the hose and fitting while tightening the clamp or threading the connection. This provides stability and control, reducing the chance of the components slipping, which could result in an insecure connection or minor injury.
Step Explanation:
Step Explanation: For hose connections, position the hose clamp about a quarter-inch from the end of the hose, over the section where the fitting’s barbs are located. Use a screwdriver or nut driver to tighten the clamp until it is snug. The clamp should be tight enough to prevent the hose from slipping off the fitting, but avoid over-tightening, as this can damage the hose. For threaded pipe connections, screw the fitting onto the pipe by hand first. Then, use a pipe wrench to tighten it another one to two turns. The goal is to create a tight seal without stripping the threads. Proper protective equipment, like gloves, can improve your grip and protect your hands during this step.
Step 4: Align the Adapter and Coupler
Simple Precaution: Before attempting to connect the cam lock fittings, ensure both cam arms on the female coupler are in the fully open, outward position. This allows the male adapter to be inserted easily and prevents any unnecessary force that could damage the fitting.
Step Explanation:
Step Explanation: This step is where the cam and groove design shines. Hold the male adapter and align it with the female coupler. The adapter should slide smoothly into the coupler. If you feel resistance, do not force it. Pull it back out and check for any obstructions like dirt or debris inside the coupler or on the adapter. Also, re-verify that the cam arms are completely open. A proper alignment is essential for a secure fit. This is a key moment in the installation process where taking an extra second to ensure everything is lined up correctly pays off in better protection against leaks and system failures. This attention to detail is part of everyday precautions for fluid handling.
Step 5: Lock the Cam Arms

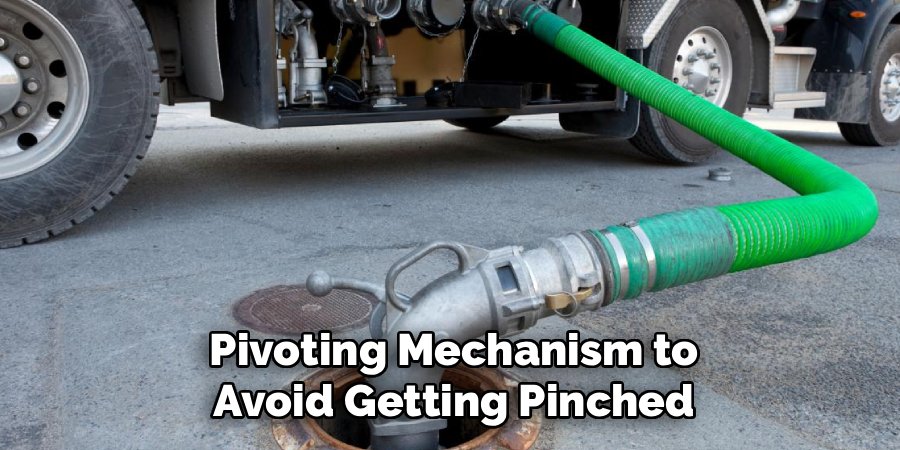

Simple Precaution: When closing the cam arms, use firm, steady pressure. Snap them down simultaneously if possible. Keep your fingers clear of the pivoting mechanism to avoid getting pinched. This simple action ensures the fitting is locked correctly and safely.
Step Explanation:
Step Explanation: With the male adapter fully inserted into the female coupler, it’s time to secure the connection. Bring both cam arms down toward the body of the fitting until they lock into place. You should feel a distinct click or snap as they engage with the groove on the adapter. This action compresses the gasket inside the coupler against the face of the adapter, creating a tight seal. The arms should be flush against the fitting and require moderate force to close. If they are too loose, the seal may not be tight enough. If they are excessively tight, it could indicate a problem with the gasket or alignment. These safety measures ensure the coupling is properly engaged.
Step 6: Perform a Final Check
Simple Precaution: After locking the arms, give the connection a gentle tug to confirm it is secure. This quick test verifies that the cam arms have properly engaged in the adapter’s groove, providing an immediate check on the integrity of your work.
Step Explanation:
Step Explanation: The final step is to verify the connection. Once the cam arms are locked, visually inspect the fitting to ensure they are fully closed and flush. Gently pull on the hose or pipe on both sides of the connection to make sure it doesn’t come apart. If the system will be under pressure, it is wise to test it at a low pressure first to check for any leaks around the seal. If you notice any drips, disconnect the fitting, check the gasket for proper placement and condition, and re-secure the connection. This final check is an essential safety measure to ensure the integrity of your fluid transfer system and provide confidence that the installation was successful.
Simple Safety Tips You Can Use

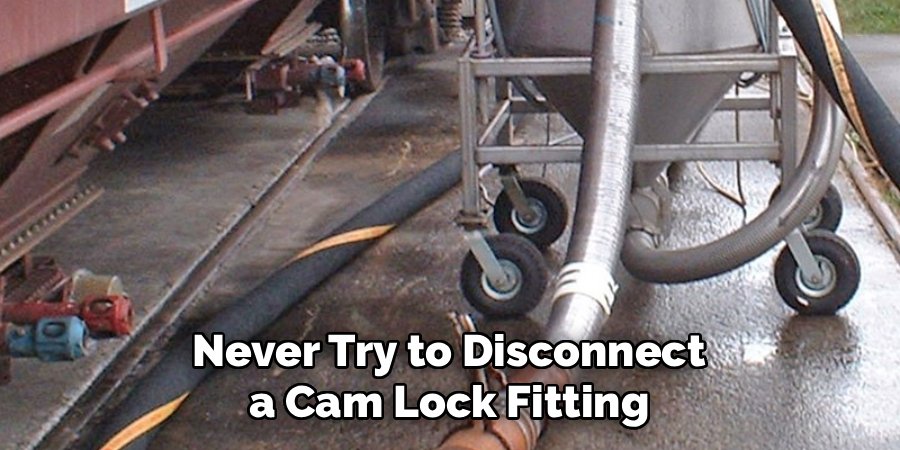

Always wear safety glasses and gloves during installation to protect yourself from any potential splashes or sharp edges. Before each use, visually inspect your cam lock fittings for wear, especially the gaskets and cam arms. Never use a fitting that appears damaged or worn out. When disconnecting, always make sure the line is depressurized first to prevent fluid from spraying out. Finally, use both hands to close the cam arms for a balanced, secure lock.
Common Mistakes to Avoid
A common mistake is using mismatched fitting sizes or materials, which can lead to a poor seal. Another frequent error is over-tightening hose clamps, which can damage the hose and lead to failures under pressure. Forgetting to inspect the gasket inside the coupler is also a common oversight; a worn or missing gasket is a primary cause of leaks. Avoid forcing a connection if it doesn’t fit smoothly, as this can damage the fitting. Finally, never try to disconnect a cam lock fitting while the line is still pressurized.
Frequently Asked Questions
How do I know what size cam lock fitting I need?
To find the right size, you need to measure the inside diameter (ID) of the hose or pipe you are connecting to. Cam lock fitting sizes are based on this ID. For example, a 2-inch fitting is designed for a 2-inch hose or pipe. It’s crucial to match the fitting size exactly to the hose or pipe size to ensure a secure, leak-proof connection. Using a fitting that is too large or too small will result in a poor seal and potential failure.
Can I connect cam lock fittings made from different materials?
While it is physically possible to connect fittings of different materials (e.g., an aluminum adapter to a stainless steel coupler), it is generally not recommended. Different metals can react with each other over time, a process called galvanic corrosion, which can weaken the fittings. For improved safety and longevity, it’s best to use fittings made of the same material throughout your system. Always consider the chemical compatibility of the material with the fluid you are transferring.

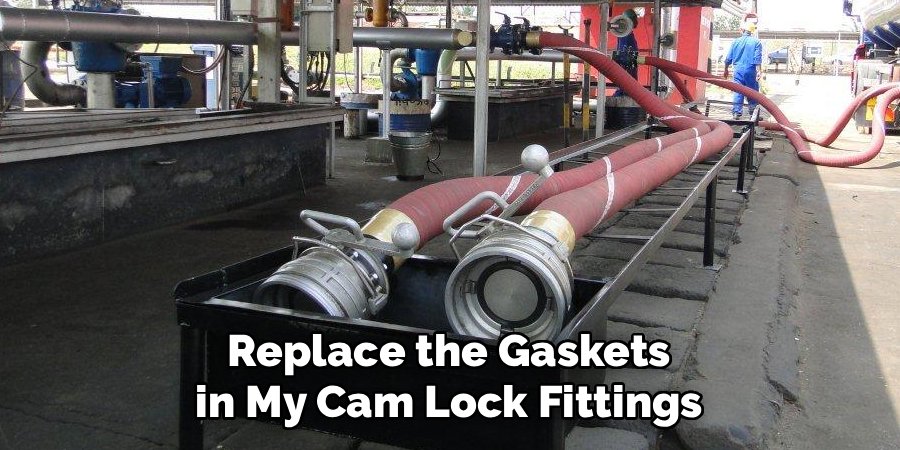

How often should I replace the gaskets in my cam lock fittings?
Gasket life depends on several factors, including the frequency of use, the type of fluid being transferred, and exposure to sunlight or extreme temperatures. As a general rule, you should inspect gaskets before every use. Replace them immediately if you see any signs of cracking, stiffness, or deformation. For systems used daily, it is good practice to replace gaskets on a regular schedule, such as every few months, to ensure a reliable seal and prevent leaks.
Conclusion
Mastering how to install cam lock fittings is a valuable skill that enhances the safety and efficiency of any fluid transfer system. By following the steps outlined in this guide, from inspecting your components to performing a final check, you can create a secure and reliable connection. Remember that responsible use begins with understanding the equipment you are working with. Taking the time to prepare your materials, check for wear, and assemble the fittings correctly will provide peace of mind and ensure your system functions as intended. We encourage you to be mindful and informed in all your installation tasks, fostering a culture of safety and diligence.
