Creating a sense of personal space and privacy within your home is a natural and healthy desire. Many people find that adding a secure fastening to an interior room helps establish necessary boundaries, especially in shared living environments. Whether you are working from home or simply need a quiet place to retreat, ensuring your door functions the way you need it to is a positive step.
Learning how to install a lock on a bedroom door is a straightforward process that empowers you to improve your home’s functionality. This task does not require advanced carpentry skills, but it does benefit from patience and attention to detail.
By approaching this project with a calm mindset, you can enhance the comfort of your living space. The goal is simply to create an environment where you feel relaxed and undisturbed. With the right preparation, you can achieve a professional result that respects both the integrity of your door and your need for privacy.
Understanding Door Security Basics
Installing a locking mechanism on an interior door involves modifying the door structure to accommodate a new handle set that includes a locking function.
Most bedroom doors use a privacy knob or lever. This type of hardware allows the door to be locked from the inside, usually with a turn button or push pin.
It differs from an exterior deadbolt, which offers high-level security. The primary purpose here is privacy and signaling that the room is occupied. It is a functional upgrade to your hardware.
Getting Ready for Installation
Before you begin handling any tools or hardware, it is helpful to take a moment to clear your workspace. A clutter-free area allows you to focus entirely on the task at hand.
Approaching the installation with a steady, unhurried pace will lead to better results. Ensure you have ample lighting in the hallway and the bedroom so you can see your measurements clearly. Taking these small preparatory actions helps ensure the process goes smoothly and safely.
The Importance of Privacy Hardware

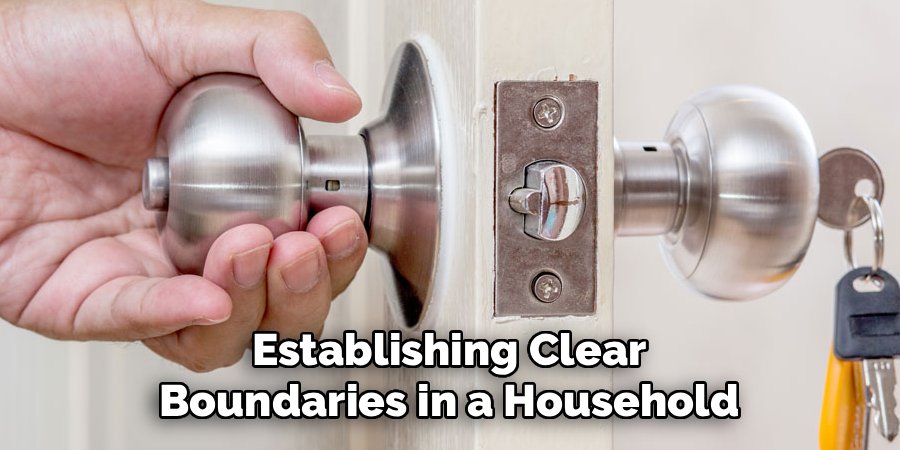

Establishing clear boundaries in a household contributes to a harmonious living environment. Privacy hardware serves as a physical indicator of personal space, which helps prevent accidental intrusions.
This is particularly valuable in multi-generational homes or shared apartments where schedules often overlap. It allows individuals to secure their room for changing clothes, sleeping, or handling confidential work matters without worry.
Understanding the function of these mechanisms helps residents respect closed doors. It fosters a culture of consideration. Properly installed hardware ensures that this boundary is maintained easily and reliably.
Common Situations You Should Be Aware Of
There are several scenarios where updating your door hardware becomes necessary. You might have moved into a home where the previous owners removed the locks for child safety reasons. Perhaps the existing mechanism is old, sticking, or no longer latching correctly, causing the door to drift open.
In other cases, a change in household dynamics, such as a new roommate moving in, might require a clearer division of space. Recognizing these needs allows you to address them proactively. It is about maintaining a comfortable and functional home environment for everyone involved.
Tools and Materials You’ll Need
- Tape measure
- Pencil or marker
- Power drill
- Hole saw kit (specifically for door knobs)
- Spade bit (typically 1 inch)
- Chisel
- Hammer
- Phillips head screwdriver
- Safety glasses
- Dust mask
- New privacy lock set (knob or lever)
6 Seamless Steps on How to Install a Lock on a Bedroom Door

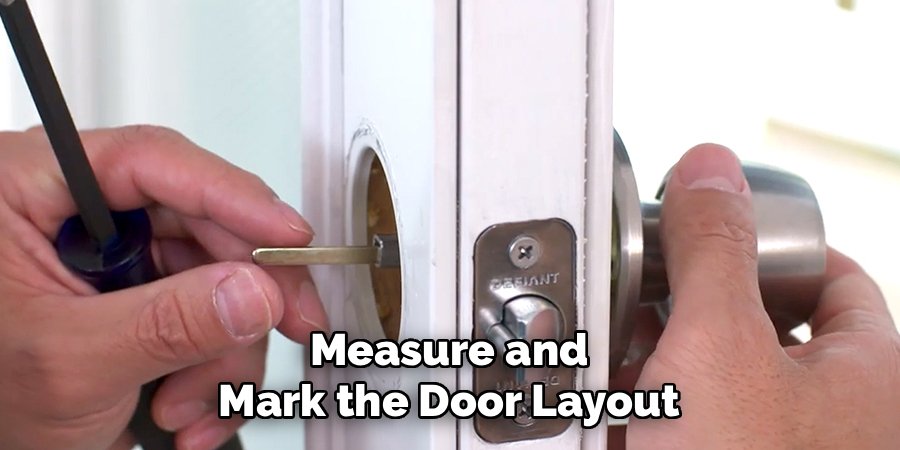

Step 1: Measure and Mark the Door Layout
Simple Precaution:
Before you make any markings, verify that the door is stabilized and will not swing unexpectedly. Using a simple door wedge at the bottom can provide improved stability. Double-checking your measurements ensures that the structural integrity of the door remains intact. This careful approach prevents the need for corrections later.
Step Explanation:
The first phase of the installation involves determining the precise height for your new hardware. Standard placement is typically 36 inches from the floor, but you should match the height of other handles in the home for consistency. Use your tape measure to find the correct distance from the bottom of the door.
Once you have the height established, use the template usually provided with your new lock set. This paper template wraps around the edge of the door. It shows you exactly where the center of the face bore (the large hole) and the edge bore (the latch hole) should be.
Mark these center points clearly with your pencil. Precision here is vital for smooth operation later. Ensure you also check the “backset” measurement, which is the distance from the edge of the door to the center of the knob. Most residential locks are either 2 3/8 inches or 2 3/4 inches. Mark this accurately to ensure the latch mechanism will fit perfectly inside the door structure without issues.
Step 2: Drill the Face Bore Hole
Simple Precaution:
When using power tools like a drill, wearing safety glasses is a standard recommendation to protect your eyes from wood shavings. Hold the drill firmly with both hands to maintain control. Ensure the area behind the door is clear of people or pets. A calm, steady grip offers better protection against slipping.
Step Explanation:
With your safety gear on, attach the correct-size hole saw to your drill. Place the pilot bit of the hole saw on the center mark you made on the face of the door. Begin drilling at a slow speed to establish a groove before increasing the speed slightly.
Apply steady, even pressure, but do not force the drill through the wood. To prevent the wood from splintering on the opposite side, stop drilling as soon as the pilot bit pokes through the back of the door.
Walk to the other side of the door and place the hole saw into the small pilot hole that just appeared. Finish drilling the hole from this second side. This technique ensures a clean, smooth cut on both surfaces of the door. It preserves the aesthetic quality of the wood and ensures the new hardware will sit flush against the surface.
Step 3: Drill the Latch Hole on the Edge
Simple Precaution:
Drilling into the narrow edge of a door requires focus to ensure the bit remains level. Secure the door firmly so it does not move. Keeping your hands away from the spinning bit is a primary safety measure. Proceeding slowly reduces potential risk and ensures the wood does not split.
Step Explanation:
Switch to the spade bit, which corresponds to the size of your latch mechanism (usually 1 inch). Position the tip of the bit on the center mark you made on the edge of the door. It is crucial to keep the drill perfectly horizontal and square to the door edge.
If you drill at an angle, the latch will not sit straight, and the lock may not function smoothly. Begin drilling straight into the edge of the door until you break through into the large face bore hole you created in the previous step.
Clean out any wood debris or shavings from inside the hole. This pathway is where the latch assembly will reside. Ensuring this tunnel is clear and straight is essential for the mechanical movement of the lock. A clean hole allows for the proper usage of the latch bolt, ensuring it can retract and extend without friction.
Step 4: Chisel the Mortise for the Faceplate
Simple Precaution:
Chisels are sharp instruments that require respectful handling. Always cut away from your body and keep your free hand behind the cutting edge. Working with small, controlled taps of the hammer offers improved safety. Rushing this step can lead to slips, so take your time.
Step Explanation:
Insert the latch assembly into the edge hole you just drilled. Trace the outline of the rectangular faceplate onto the door edge with your pencil. Remove the latch assembly and set it aside. You now need to create a shallow recess, called a mortise, so the faceplate sits flush with the door edge.
Use your chisel and hammer to carefully remove the wood inside your traced outline. You only need to go as deep as the thickness of the faceplate, which is usually about 1/8 of an inch.
Make small cuts across the grain first, then gently pare away the wood. Test the fit frequently by inserting the latch. A flush fit ensures the door will close properly without hitting the door frame. This attention to detail prevents binding and ensures the longevity of your installation.
Step 5: Install the Latch and Strike Plate
Simple Precaution:
Check that the screws provided are suitable for the wood type to avoid stripping the heads. Using a manual screwdriver instead of a power drill for this step offers better protection against overtightening. Ensure the work area remains free of sawdust to prevent slipping. Gentle tightening is sufficient.
Step Explanation:
Slide the latch assembly back into the edge hole. The beveled side of the latch bolt should face the door jamb (the direction the door closes). Insert the two small wood screws through the faceplate holes and tighten them until the plate is secure and flush with the door edge.
Next, move to the door frame. You need to install the strike plate, which is the metal piece that catches the latch. Align the strike plate with the height of the latch on the door. You may need to drill a shallow hole for the latch to extend into and chisel a small mortise for the strike plate, similar to the door edge.
Screw the strike plate into the door frame securely. Proper alignment between the latch and the strike plate is critical for the lock to engage securely. If they are misaligned, the door may rattle or fail to latch completely.
Step 6: Assemble the Knobs or Levers
Simple Precaution:
Be mindful of pinching your fingers between the hardware components as you slide them together. Handle the polished metal surfaces carefully to avoid scratches. Working with a calm focus ensures the internal mechanisms align without forcing them. Gentle assembly prevents potential damage to the lock.
Step Explanation:

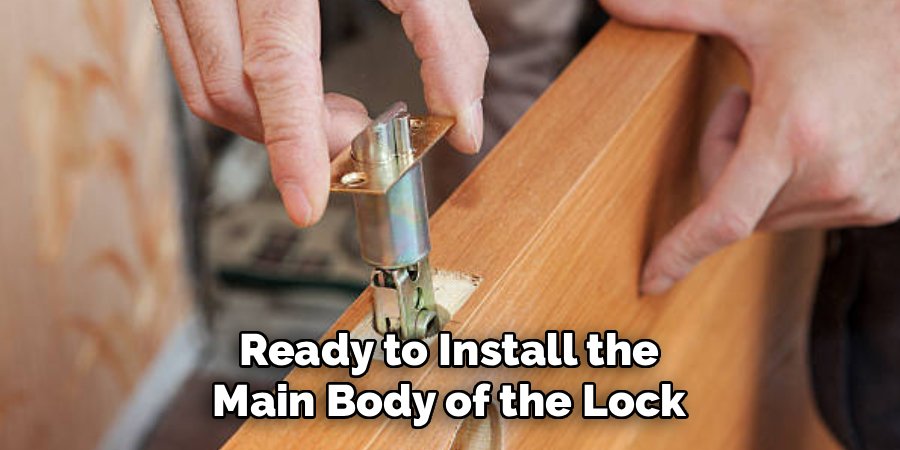

You are now ready to install the main body of the lock. Take the outside knob or lever (the one without the locking mechanism) and insert it through the face bore hole. The spindles should pass through the latch assembly inside the door.
Align the inside knob (the one with the lock button) with the spindles protruding from the other side. Push the two halves together until they sit flat against the door surface. Insert the long machine screws through the holes on the inside knob.
Thread them into the mounting posts of the outside knob. Tighten these screws with your Phillips screwdriver. Test the operation of the knob and the locking mechanism several times. The latch should retract smoothly when the knob is turned and lock firmly when the button is engaged. This confirms the successful completion of your hardware update.
Simple Safety Tips You Can Use

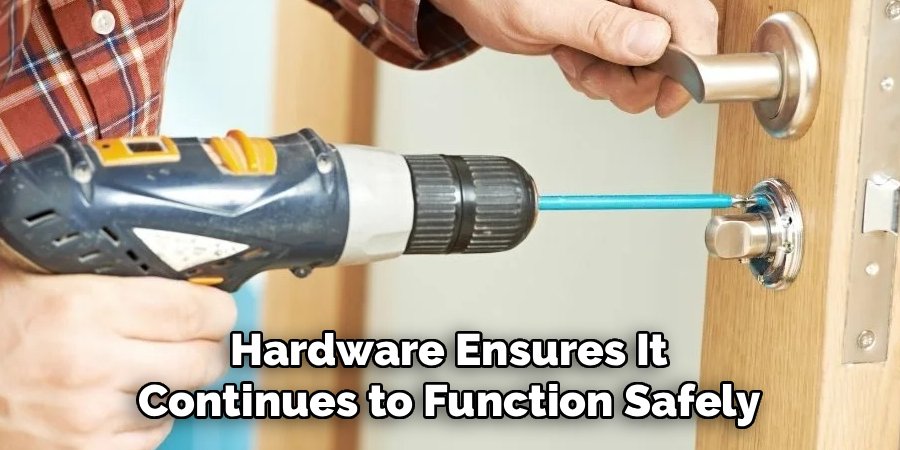

Maintaining your door hardware ensures it continues to function safely. Periodically check the screws on the faceplate and knobs, as they can loosen over time with regular use.
It is wise to keep the emergency release tool (often a small pin or flat key) that comes with the set in a known location outside the room. This ensures that access is possible if the door is accidentally locked from the inside.
Avoid slamming the door, as this can damage the internal latch mechanism. Regular cleaning with a soft cloth keeps the finish looking new without affecting the mechanics.
Common Mistakes to Avoid
A frequent error involves misaligning the latch hole with the strike plate hole. This mismatch causes the door to rattle or fail to close fully.
Another issue is over-tightening the screws that hold the knobs together. This can compress the locking mechanism, making it stiff or difficult to turn.
Rushing the drilling process can lead to splintered wood on the door face. Always drill from both sides to prevent this.
Finally, failing to check the backset measurement can result in a latch that does not reach the center of the hole.
Frequently Asked Questions
Can I install a lock on a hollow core door?
Yes, you can install privacy hardware on a hollow-core door. These doors are standard in many homes. You must be gentle when drilling the large hole to avoid crushing the door’s surface. The structure around the edge usually has a solid wood block to support the latch. Ensure your drill speed is moderate to make a clean cut through the thin outer veneer without causing damage.
Is it difficult to learn how to install a lock on a bedroom door?
Learning this skill is generally considered a beginner-level DIY project. Most hardware kits come with a template that makes measuring simple. As long as you have the basic tools like a drill and screwdriver, the process is logical and step-by-step. It typically takes about an hour or less. Taking your time with measurements is the key to an easy and successful experience.

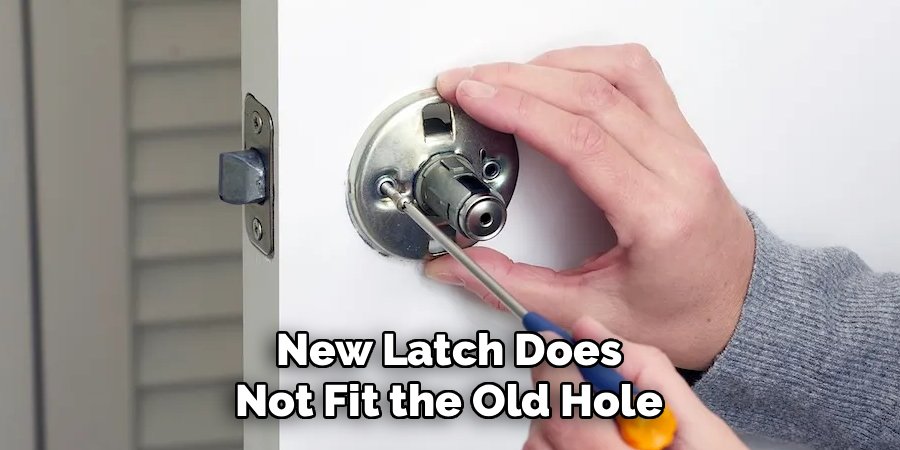

What if the new latch does not fit the old hole?
If you are replacing an old knob and the holes do not line up, you may need to adjust the door. If the hole is too small, you can carefully enlarge it with a file or rasp. If the backset (distance from the edge) is different, many modern latches are adjustable to fit both standard sizes. Always check the specifications on the packaging before starting to ensure compatibility with your existing door preparation.
Conclusion
How to install a lock on a bedroom door is a skill that concludes with a more functional and private living space. By following these steps and precautions, you have improved the comfort of your home environment.
Remember that maintaining boundaries is a healthy part of shared living. Regular maintenance of your new hardware will ensure it lasts for years. We hope this guide has helped you feel more confident in managing your home repairs and improvements responsibly.
