Securing personal items and valuables in cabinets, drawers, or mailboxes is a practical consideration for both homes and workplaces. A cam lock provides a simple, reliable way to add a layer of protection without complicated mechanisms. Learning how to install a cam lock can feel like a careful project rather than a task to rush, and understanding the process helps ensure both effectiveness and safety.
By following straightforward steps and using basic protective measures, you can achieve a professional-looking installation while minimizing potential risks such as accidental scratches, misalignment, or minor mishaps. With proper preparation and attention to detail, this project becomes manageable, empowering you to confidently secure your belongings with improved safety and everyday precautions.
What is a Cam Lock?

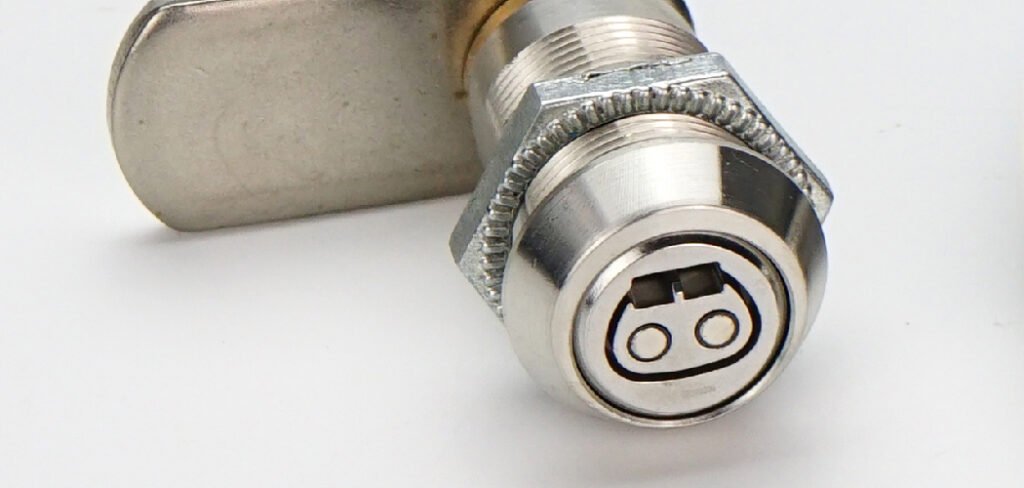

A cam lock is a compact locking mechanism commonly used for cabinets, drawers, mailboxes, and various enclosures. It consists of a cylindrical body that houses the lock, a key for operation, and a flat metal arm called the cam. When the key turns, the cam rotates, latching against the frame and holding the door or drawer securely closed.
These locks are valued for their simplicity, versatility, and ease of installation. The cam’s shape and length can vary, which allows it to engage different frame depths effectively. Cam locks provide everyday protection for personal or professional items without requiring advanced locksmithing skills, making them accessible for beginner-friendly home or office projects.
Preparing for Installation
Before beginning the actual installation, taking a few calm and intentional preparatory steps is beneficial. Gathering all necessary tools, double-checking measurements, and clearing the workspace ensures a smooth experience and reduces potential risks like misalignment or accidental damage.
Understanding where the cam will engage and visualizing the final setup helps with precision and confidence. By taking a moment to organize and plan, you create a safe and controlled environment for the project. This thoughtful preparation sets the stage for accurate placement, proper engagement of the cam, and an installation that looks professional while offering reliable everyday protection.
Why Proper Installation Matters

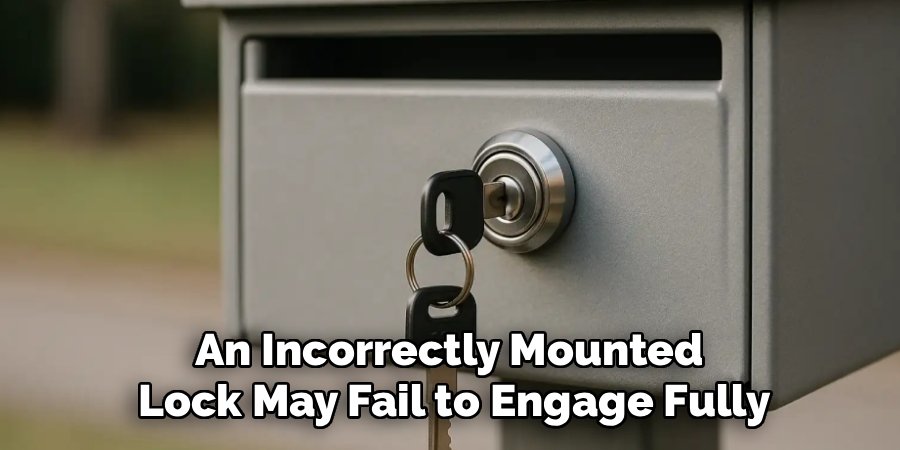

Proper installation ensures that the cam lock functions as intended, providing better protection and preventing potential risks such as a loose lock or misaligned cam. An incorrectly mounted lock may fail to engage fully, reducing its effectiveness. Even minor miscalculations, such as an off-center hole or misoriented cam, can affect smooth operation over time.
Attention to detail during installation safeguards both the furniture and the lock mechanism itself, promoting long-term reliability. By focusing on accuracy and proper technique, you enhance everyday security and ensure that the lock offers consistent performance while minimizing potential wear or friction that could arise from improper placement.
Common Situations You Should Be Aware Of
Cam locks, though simple, are affected by routine wear and environmental factors. High-use areas, such as office filing cabinets or frequently accessed drawers, may experience loosening of the mounting nut or gradual bending of the cam. Lower-quality locks made from softer metals can show signs of wear sooner than high-grade models.
Additionally, exposure to moisture or extreme temperature changes may slightly alter performance over time. Being aware of these situations helps you choose durable hardware, perform routine checks, and recognize when adjustments or replacements are appropriate. Understanding potential influences on the lock’s performance promotes ongoing security and everyday convenience.
Tools and Materials You’ll Need
- Cam lock kit (body, cam, pronged washer, mounting nut, screw)
- Power drill
- Drill bits (including the diameter matching your lock body)
- Tape measure or ruler
- Pencil or marker
- Adjustable wrench or pliers
- Screwdriver (Phillips or flathead, depending on kit)
- Safety glasses
- Gloves
Step-by-Step Guide: How to Install a Cam Lock
Step 1: Measure and Mark the Drilling Location
Safety and precision go hand-in-hand when marking your drilling spot. Put on your safety glasses and gloves to protect yourself from dust or accidental slips. Use a tape measure or ruler to determine the ideal center point for your lock, typically equidistant from edges for aesthetic balance. Mark the exact location with a pencil, ensuring alignment with where the cam will engage inside the frame. Double-check your measurement before drilling.
This step establishes a foundation for the installation, providing both accurate placement and safer handling, minimizing the potential for minor errors that could affect lock performance. Thoughtful preparation ensures a secure fit and smooth function.
Step 2: Drill the Mounting Hole
Before drilling, confirm the workpiece is stable, ideally placed on a sturdy surface or workbench. Select the drill bit matching your lock body, commonly a 3/4-inch spade bit. Position the drill tip on your pencil mark and start at a slow speed to create a pilot indentation. This method helps prevent slipping and splintering while giving better control.
Gradually increase the speed, applying steady, even pressure until the hole is complete. Throughout this process, wear protective eyewear and maintain a firm grip. Drilling carefully ensures a clean hole for the lock body, improves everyday safety, and supports accurate alignment for optimal lock engagement.
Step 3: Insert and Secure the Lock Body
Clear away any wood shavings from the hole and ensure the surface is clean. Remove any preassembled cam, washer, and nut from the lock body. Insert the cylindrical lock body through the hole from the exterior, keeping the keyhole facing outward. Slide the pronged washer over the threaded body from the inside, ensuring the teeth face the material to prevent spinning. Hand-tighten the mounting nut to hold the lock in place, leaving flexibility for adjustments in the next steps. Handling small components carefully, using protective gloves, and ensuring a clean surface promotes smooth assembly and everyday reliability of the lock.
Step 4: Attach and Position the Cam
Insert the key into the lock and turn it to the unlocked position to determine correct cam orientation. Most kits include both straight and offset cams to match frame depth. Attach the appropriate cam to the square or double-D shaft at the back of the lock body, ensuring the cam points away from the locking direction. Secure it using the provided screw, tightening firmly but not excessively to avoid stripping threads. Proper alignment ensures the cam engages correctly when the key is turned, providing reliable everyday protection. Visualizing the movement of the cam before tightening helps prevent potential misalignment and promotes smoother operation.
Step 5: Final Tightening and Testing
Close the cabinet or drawer to check cam alignment. Turn the key to confirm it rotates smoothly and engages the frame securely. If necessary, adjust the cam or switch to the alternative cam provided in the kit. Once aligned, use an adjustable wrench to fully tighten the mounting nut, allowing the pronged washer to grip the material firmly. Test the lock multiple times to ensure consistent operation. This final check reinforces the proper installation, promoting long-term functionality and reducing minor risks such as loosened parts or uneven engagement, ultimately contributing to a secure and reliable lock mechanism.
Simple Safety Tips You Can Use

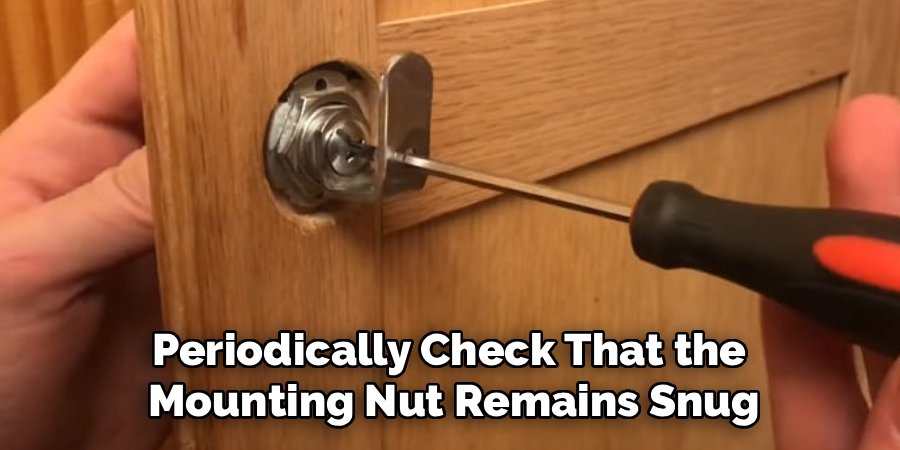

Routine care enhances the lifespan and effectiveness of cam locks. Periodically check that the mounting nut remains snug, as vibrations from regular use can cause minor loosening. Apply a graphite-based lubricant to maintain smooth key rotation, avoiding oil-based options that can attract dust. Always store keys in a designated, secure location. Gentle handling when turning the key and keeping the cam free of obstructions ensures optimal function. These simple precautions foster safe, reliable, and user-friendly operation, providing everyday protection without complex maintenance or specialized tools.
How to Stay Safe in Everyday Situations
Home: Lock filing cabinets, desk drawers, or small safes routinely to maintain consistency and peace of mind. Regular use builds a habit of security without relying on urgent intervention.
Family: For households with children, store keys out of reach and communicate locked areas clearly with older family members. This encourages awareness and shared responsibility rather than restriction.
Furniture/Lifestyle: When used for display cabinets, liquor cabinets, or office furniture, consider both aesthetics and security. Choosing finishes that blend with existing hardware maintains visual harmony while offering controlled access and everyday convenience.
Common Mistakes to Avoid
Awareness of common issues helps improve installation quality. Over-tightening mounting nuts or cam screws can stress the material or strip threads. Inaccurate measurement may misalign the cam, reducing engagement. Choosing an incompatible cam or lock size can result in a loose fit that diminishes effectiveness. Minor wear over time, such as slight loosening of components, is typical but manageable through routine checks. Recognizing these potential pitfalls encourages careful handling, thoughtful selection, and consistent maintenance for sustained performance and reliability.
Frequently Asked Questions
What do I do if I drill the hole in the wrong spot?
Mistakes in hole placement are fixable with a calm approach. Wood filler or epoxy putty can close the incorrect hole. Slightly overfill the area to account for shrinkage, then sand smooth once cured. Touch up with matching paint or stain for a seamless finish. After this, re-measure carefully and drill the correct hole location. Taking the time to repair and measure prevents repeated errors, ensures accurate placement, and supports consistent lock function. Patience and attention to detail result in a professional-looking installation even after minor setbacks.
My cam lock feels loose. How can I fix it?
A loose cam lock often relates to the mounting nut or cam screw. First, check the mounting nut on the interior side of the door or drawer. Tightening it with an adjustable wrench usually resolves most looseness. If the lock still wobbles, inspect the cam screw and tighten it carefully with the appropriate screwdriver. Routine checks ensure stability, proper cam engagement, and smoother operation. Maintaining this habit reduces everyday wear and preserves the lock’s reliability without requiring additional tools or complex adjustments.
How do I choose the right size cam lock?

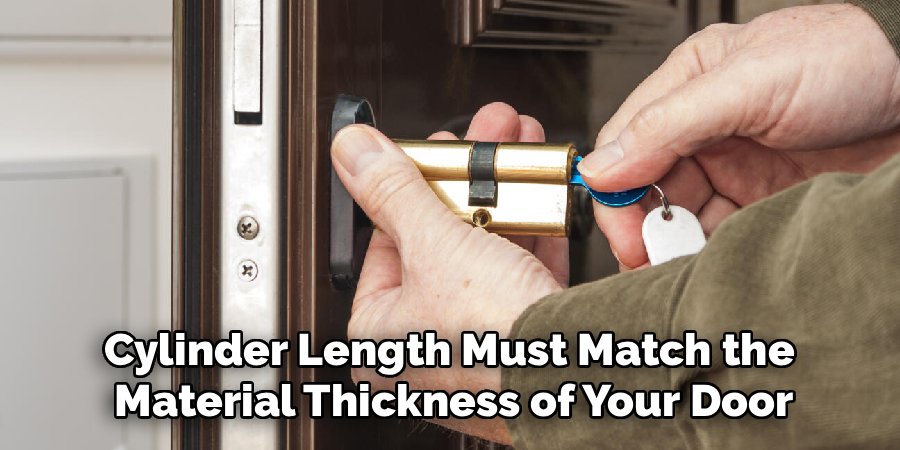

Selecting a cam lock involves two primary measurements: cylinder length and cam reach. Cylinder length must match the material thickness of your door or drawer front to ensure proper installation. Cam reach determines how far the cam must extend to latch securely. Kits often provide straight and offset cams to accommodate different depths. Measuring from the front surface to the inside frame allows selection of the appropriate cam, promoting smooth engagement and better protection. Proper sizing ensures both functional performance and everyday reliability.
Can I install a cam lock on a metal cabinet?
Yes, installation on metal is possible with a few adjustments. Use a drill bit suitable for metal, ideally a step drill, and create a small indentation with a center punch to prevent slipping. Apply cutting oil to maintain bit performance. Once the hole is complete, installation mirrors the process for wood: insert the body, attach the washer and nut, and secure the cam. Using protective gear and careful handling ensures clean installation, smooth operation, and safe handling of metal surfaces while maintaining everyday protection for your items.
What is the difference between keyed-alike and keyed-different cam locks?
Keyed-different locks each have a unique key, ideal for situations requiring individual access, such as employee lockers. Keyed-alike locks share the same key across multiple units, simplifying access for areas like multiple office cabinets or furniture sets. Choosing the right option depends on your convenience and access needs. Both types provide secure operation, but keyed-alike systems can reduce the number of keys you manage. Considering this distinction helps plan your setup efficiently while maintaining proper control and everyday ease of use.
Conclusion
Learning how to install a cam lock equips you with the knowledge to enhance the security of cabinets, drawers, and personal enclosures in a reliable and calm manner. By following careful preparation, accurate measurement, and thoughtful assembly, you ensure the lock functions correctly and provides consistent protection.
Regular checks and simple preventive measures maintain smooth operation and extend the life of the mechanism. With patience and attention to detail, installing a cam lock becomes a manageable, confidence-building project that blends functionality, aesthetics, and everyday security.
