Upgrading your home with modern conveniences can be both satisfying and practical. Installing a motion sensor light switch adds hands-free control over lighting, improving convenience, energy efficiency, and overall comfort. Many homeowners feel hesitant when approaching electrical wiring, which is understandable.
However, by following safe procedures and taking basic precautions, wiring a motion sensor switch can be straightforward. This guide explains how to wire a motion sensor light switch in a calm, reassuring way, ensuring you understand each step while maintaining a safe environment. With careful preparation and attention to detail, you can confidently complete this project and enjoy the benefits of automated lighting without compromising safety.
What Is a Motion Sensor Light Switch?
A motion sensor light switch is an automated device that detects movement and turns lights on or off accordingly. Using technologies like passive infrared (PIR), the switch senses body heat and triggers lighting when motion is detected. Unlike a traditional toggle switch, it removes the need for manual operation, offering a hands-free lighting experience. These switches are commonly used in garages, closets, laundry rooms, and hallways. Beyond convenience, they contribute to energy savings by ensuring lights aren’t left on unnecessarily. The simplicity and efficiency of motion sensor switches make them a practical solution for modern homes, combining functionality with a subtle technological upgrade.
Preparing for Installation
Before beginning, preparation is key to a smooth and safe project. Understand the full process of installing a motion sensor switch, gather all required tools, and identify the wiring in your electrical box. Working in a well-lit environment helps reduce mistakes, and having a clear plan ensures a calm approach. Take time to read the manufacturer’s instructions, note the wire types in your home, and organize your workspace. Being prepared transforms a potentially intimidating task into a controlled, manageable process, allowing you to focus on accuracy and safety throughout the installation.
The Importance of Proper Wiring
Proper wiring is essential for both safety and functionality. Incorrect connections can result in a switch not operating as intended or cause potential risks in your home’s electrical system. Learning and following the correct wiring steps ensures your motion sensor switch functions reliably, integrates seamlessly with your existing electrical setup, and provides long-term efficiency. Thoughtful attention to wiring also reduces the chance of troubleshooting issues later, giving you confidence that your automated lighting will perform as expected. Responsible installation promotes better protection and supports a safer, more energy-conscious home environment.
Common Situations You Should Be Aware Of
Motion sensor switches occasionally behave in unexpected ways. For example, a light may remain on continuously or fail to activate. Common causes include overly sensitive settings, nearby heat sources, or motion detected outside the intended area. Understanding these scenarios helps you identify why a switch may behave differently and allows adjustments to settings rather than rewiring. Being aware of these factors helps maintain proper function and ensures your switch provides consistent, hands-free lighting. Familiarity with potential environmental influences improves your confidence when installing and fine-tuning your motion sensor switch.
Tools and Materials You’ll Need
- Voltage Tester (Non-Contact)
- Phillips and Flathead Screwdrivers
- Wire Strippers/Cutters
- Needle-Nose Pliers
- Motion Sensor Light Switch
- Wire Nuts
- Electrical Tape
- Flashlight or Headlamp
Step-by-Step Guide: How to Wire a Motion Sensor Light Switch
Step 1: Turn Off the Power and Confirm

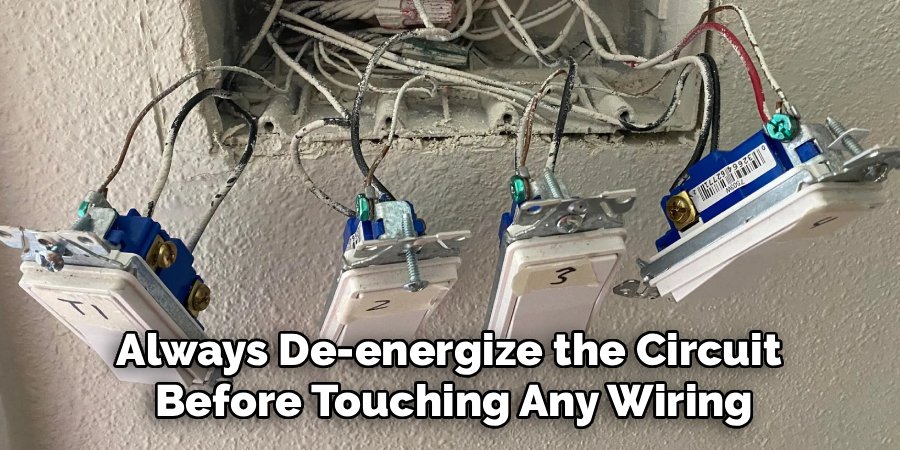

Simple Precaution: Always de-energize the circuit before touching any wiring. Switch off the corresponding breaker at the main panel and use a voltage tester to confirm the absence of electricity. This precaution ensures your work environment is safe.
Step Explanation: Begin by switching off the breaker that controls your light circuit. Once off, use a non-contact voltage tester near the switch and wires. The tester should remain inactive, confirming no live current is present. If it activates, verify you’ve selected the correct breaker. Confirming no electricity is present is essential for safety and allows you to proceed confidently. After verification, remove the old switch plate and expose the wiring. Taking a systematic approach at this stage reduces potential hazards and supports smooth progress during installation.
Step 2: Remove the Old Light Switch
Simple Precaution: Handle wires and the switch carefully to avoid damaging insulation or loosening nearby connections. Avoid bending wires sharply.
Step Explanation: Remove the screws holding the switch plate and the switch itself in place. Gently pull the switch from the electrical box, noting the wire connections. Typically, you’ll find black (hot), white (neutral), and green or bare copper (ground) wires. Some setups may include a red wire if it’s a three-way switch. Taking a photo or labeling the wires is recommended for reference. Carefully loosen terminal screws and detach wires from the old switch. Observing wire placement ensures accurate reconnection to your motion sensor switch.
Step 3: Identify Your Wires
Simple Precaution: Take time to identify each wire accurately. Misidentifying wires can cause operational issues and reduce the safety of your installation.

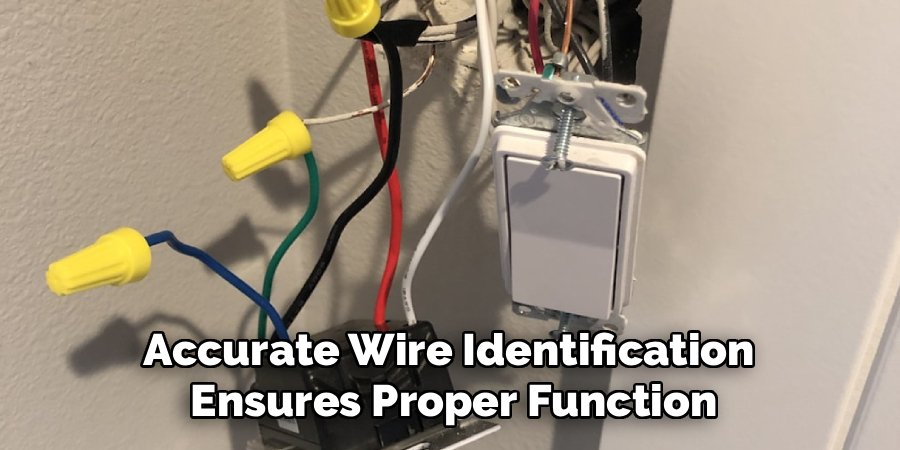

Step Explanation: A typical electrical box includes a line wire (hot, usually black), load wire (going to the light, usually black or red), neutral wire (white), and ground wire (green or bare). The line wire supplies power, while the load wire sends current to the fixture. The neutral completes the circuit, and the ground adds safety. Confirm your box has a neutral wire; some older homes lack this. If absent, select a motion sensor switch designed for no-neutral applications. Accurate wire identification ensures proper function and a safe connection with your new switch.
Step 4: Connect the Wires to the Motion Sensor Switch
Simple Precaution: Secure each wire with wire nuts and ensure no bare wire is exposed. A firm connection improves both safety and the switch’s performance.

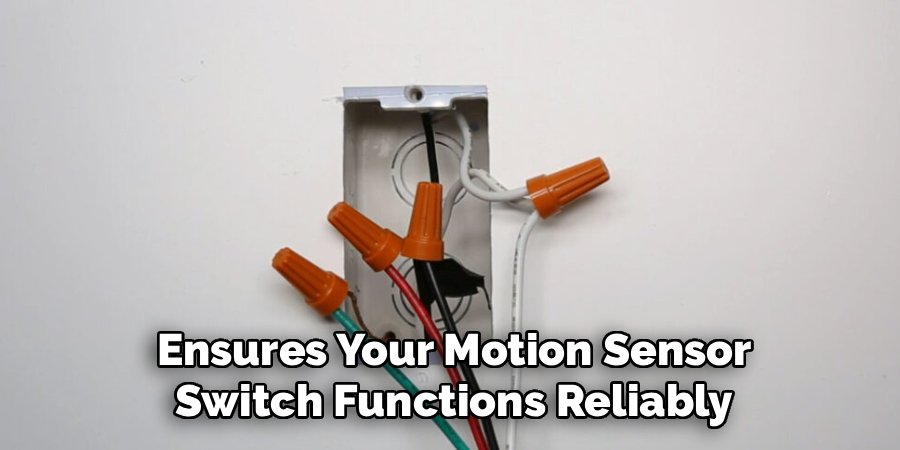

Step Explanation: Motion sensor switches typically have black, white, green, and sometimes red wires. Connect the black switch wire to the line wire from the panel. Connect the red switch wire to the load wire going to the light fixture. Connect the white neutral wire from the switch to the neutral bundle in the box. Attach the green or bare copper wire to the grounding wires. Twist each connection tightly with a wire nut and confirm stability with a gentle tug. Proper wire connections prevent malfunction, ensure better protection, and allow the sensor to operate as intended.
Step 5: Install and Secure the New Switch
Simple Precaution: Do not force the switch into the box. Neatly fold wires to avoid pinching or damage. This promotes better safety and longevity of your installation.
Step Explanation: Carefully push the connected wires into the box, folding them in an accordion style to avoid stress on the insulation. Align the switch mounting holes with the box and secure it with screws. Avoid overtightening, as this can crack the switch housing. Once the switch is secured and flush with the wall, attach the new switch plate. This step ensures a neat, professional appearance while maintaining proper wire positioning. Proper installation at this stage supports safe operation and protects the internal components of the switch.
Step 6: Restore Power and Test the Switch
Simple Precaution: Double-check all connections before re-energizing the circuit to minimize any potential risks.

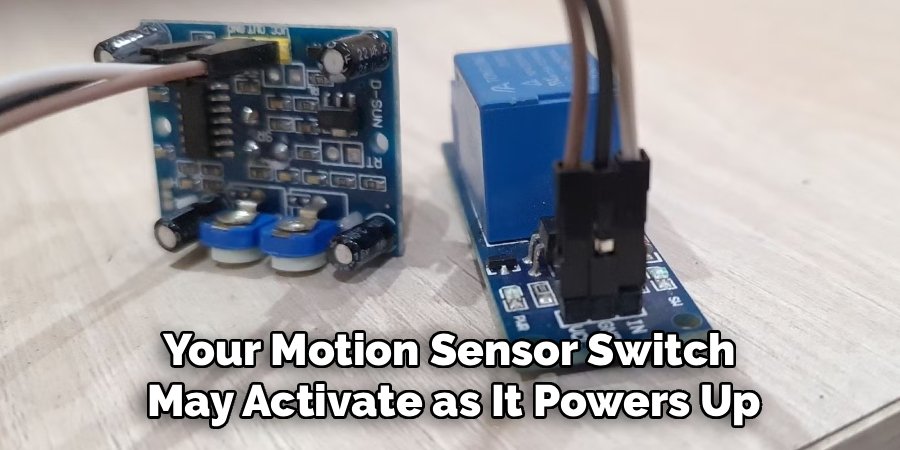

Step Explanation: Return to the breaker panel and turn the circuit back on. Your motion sensor switch may activate as it powers up. Test its function by walking into the room; the light should turn on. Wait for the designated time for the light to turn off automatically. Adjust sensitivity and time-delay settings according to the manufacturer’s instructions to match your preference. Testing ensures that the installation is successful and the switch functions reliably. It also reinforces confidence in the safety and efficiency of your new lighting system.
Simple Safety Tips You Can Use
Confirm the circuit is off before touching wires. Always use insulated tools when possible. Wear safety glasses to protect your eyes from debris. Scramble switch dials after installation or adjustments to avoid accidental exposure. Keep manufacturer instructions handy for model-specific details. Consistent attention to these habits improves safety and helps prevent minor mistakes while handling electrical devices.
Common Mistakes to Avoid
Not confirming the power is off is a frequent oversight. Misidentifying line and load wires can cause malfunctions. Forgetting to connect the ground wire reduces safety. Choosing a switch incompatible with your wiring setup, such as one requiring a neutral wire when none exists, is another common error. Awareness of these issues supports accurate and safe installation while reducing troubleshooting later.
Frequently Asked Questions
Why does my motion sensor light stay on all the time?
Continuous activation often results from sensitivity or environmental triggers. Check for an “override” mode that keeps lights on permanently. Reduce sensitivity if the switch detects movement from adjacent rooms or hallways. Nearby heat sources like vents, sunlight, or lamps may also activate the sensor. Adjust settings gradually, testing after each change, to maintain consistent and efficient operation. Understanding these influences ensures proper function without modifying the wiring.
Can I install a motion sensor switch in a three-way circuit?
Yes, using a three-way motion sensor switch designed for this setup. These switches have an extra wire to communicate with the second switch. Typically, only one switch is replaced, while the other remains standard. Follow the manufacturer’s wiring diagram closely, as three-way setups are more complex than single-pole installations. If uncertain, consulting a licensed electrician is a safe approach.
Do motion sensor switches require a neutral wire?
Many switches need a neutral wire to power internal electronics. Modern homes usually include white neutral wires. Older homes may lack them. If no neutral exists, select a switch labeled “no neutral required” or have an electrician install a neutral wire. Confirm wiring before purchasing a switch to ensure compatibility and avoid installation issues.
How do I adjust the settings on my motion sensor switch?

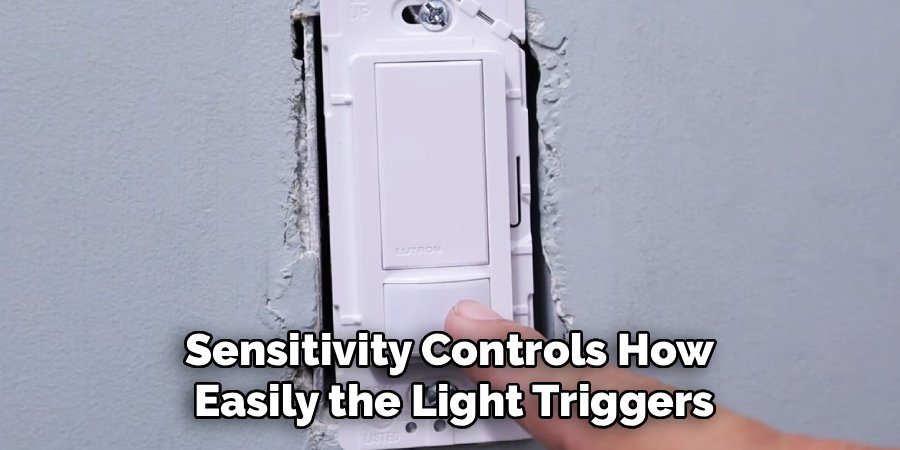

Most switches have sensitivity and time-delay adjustments. Sensitivity controls how easily the light triggers, and time-delay sets how long it stays on after no motion is detected. Some models include ambient light settings so the switch only activates when it’s dark. Refer to the manual for exact instructions, adjusting gradually to match your preferences. Fine-tuning helps maintain convenience, efficiency, and comfort.
How do I wire a motion sensor light switch if my wiring colors are different?
Older homes may not follow standard color coding. Use a voltage tester to identify the hot (line) wire. The other wire connected to the fixture is likely the load. Avoid guesswork; if unsure, consult a qualified electrician. Correct identification ensures safe operation and prevents potential hazards, supporting long-term reliability.
Conclusion
Learning how to wire a motion sensor light switch is a valuable skill that allows homeowners to improve convenience and energy efficiency responsibly. By following careful preparation, understanding wire identification, and methodically connecting your switch, you ensure a safe and effective installation. This project emphasizes informed, deliberate actions over guesswork, promoting better protection and long-term performance. With attention to detail and proper safety practices, your motion sensor lighting will function reliably, enhancing your home while giving you peace of mind.
